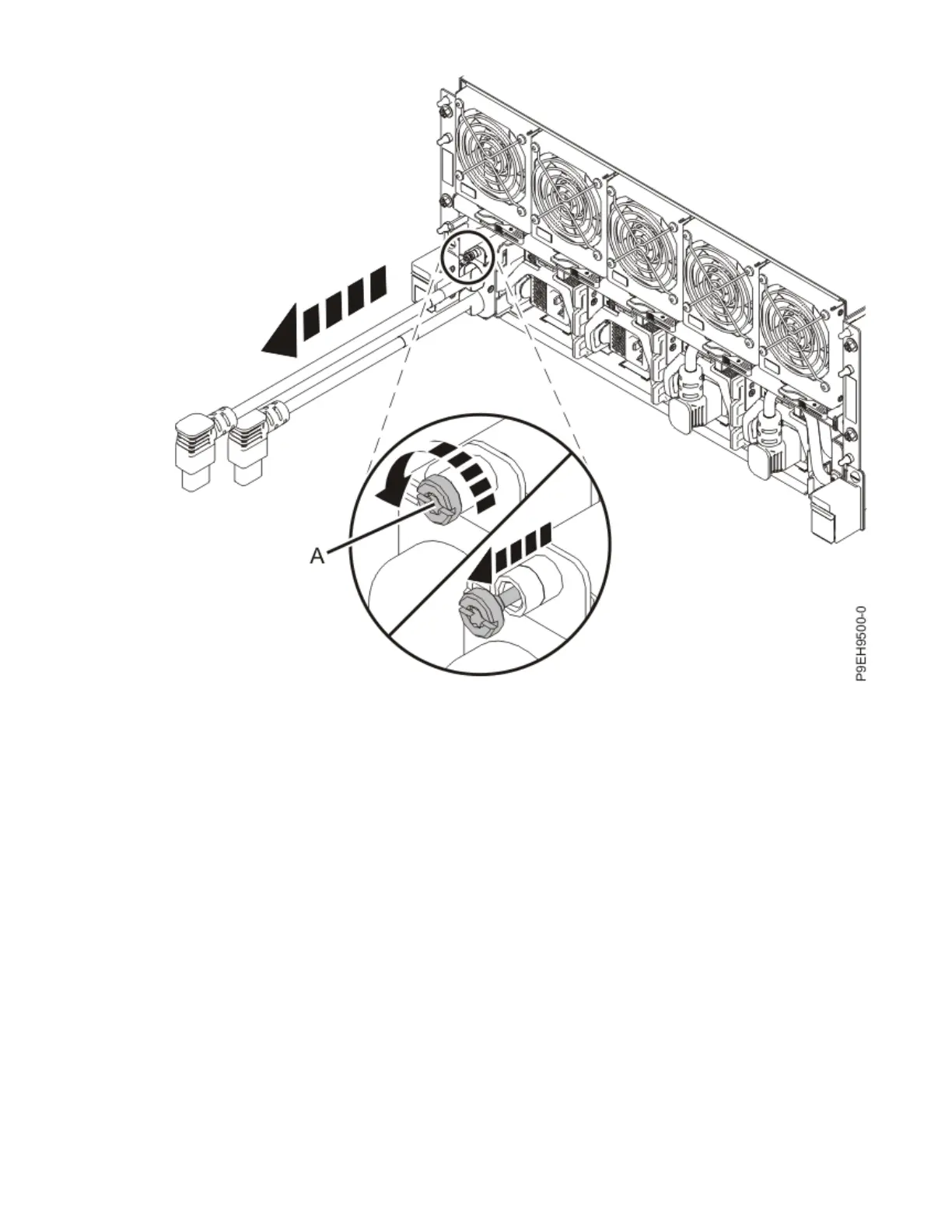

Figure 5. Removing the line cord conduit from the front of the system
Replacing a line cord conduit in the 9080-M9S system node
To replace a line cord conduit, complete the steps in this procedure.
Procedure
1. Complete the following steps at the front of the system.
a) Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is
plugged into a ground jack or connected to an unpainted metal surface. If not, do so now.
b) Slide the line cord conduit into the front of the system. Tighten the screw (A) to secure the line cord
conduit. Refer to the following îš³gure.
6
Power Systems: Removing and replacing parts in the 9080-M9S system
