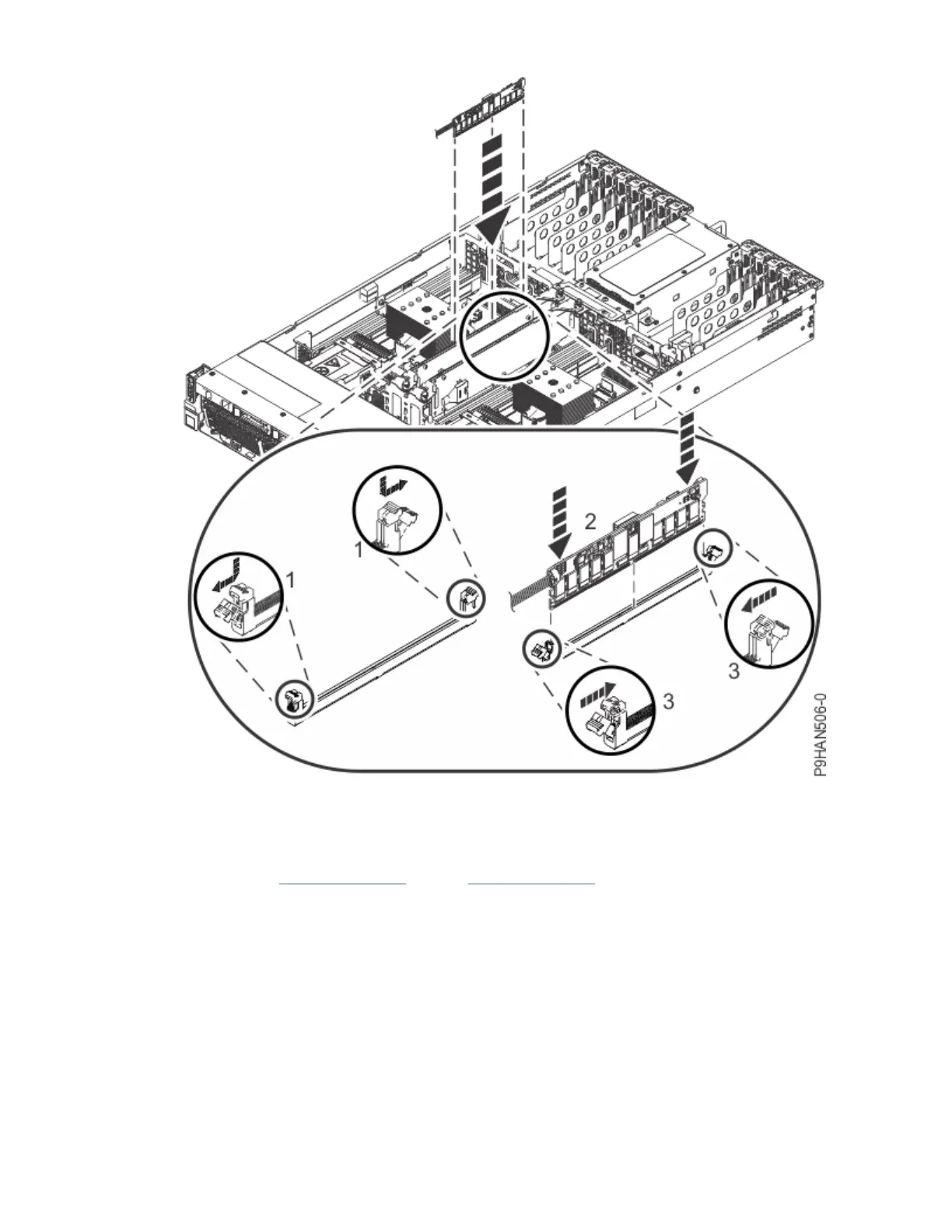

Figure 100. Replacing an NVDIMM
Note: It is important the BPM cable is routed correctly to allow for proper installation of the air
baffles.
d) Repeat steps “17.a” on page 98 through “17.c” on page 99 for any additional NVDIMMs.
18. Replace the NVMe U.2 pass-thru card, if present. Otherwise, continue with the next step.
a) Route the NVMe cable into position while you lower the NVMe U.2 pass-thru card into its slot.
b) Push the NVMe U.2 pass-thru card down to seat the card.
c) Push in and twist the screws (A) clockwise to fully seat the NVMe U.2 pass-thru card.
100
Power Systems: System backplane
