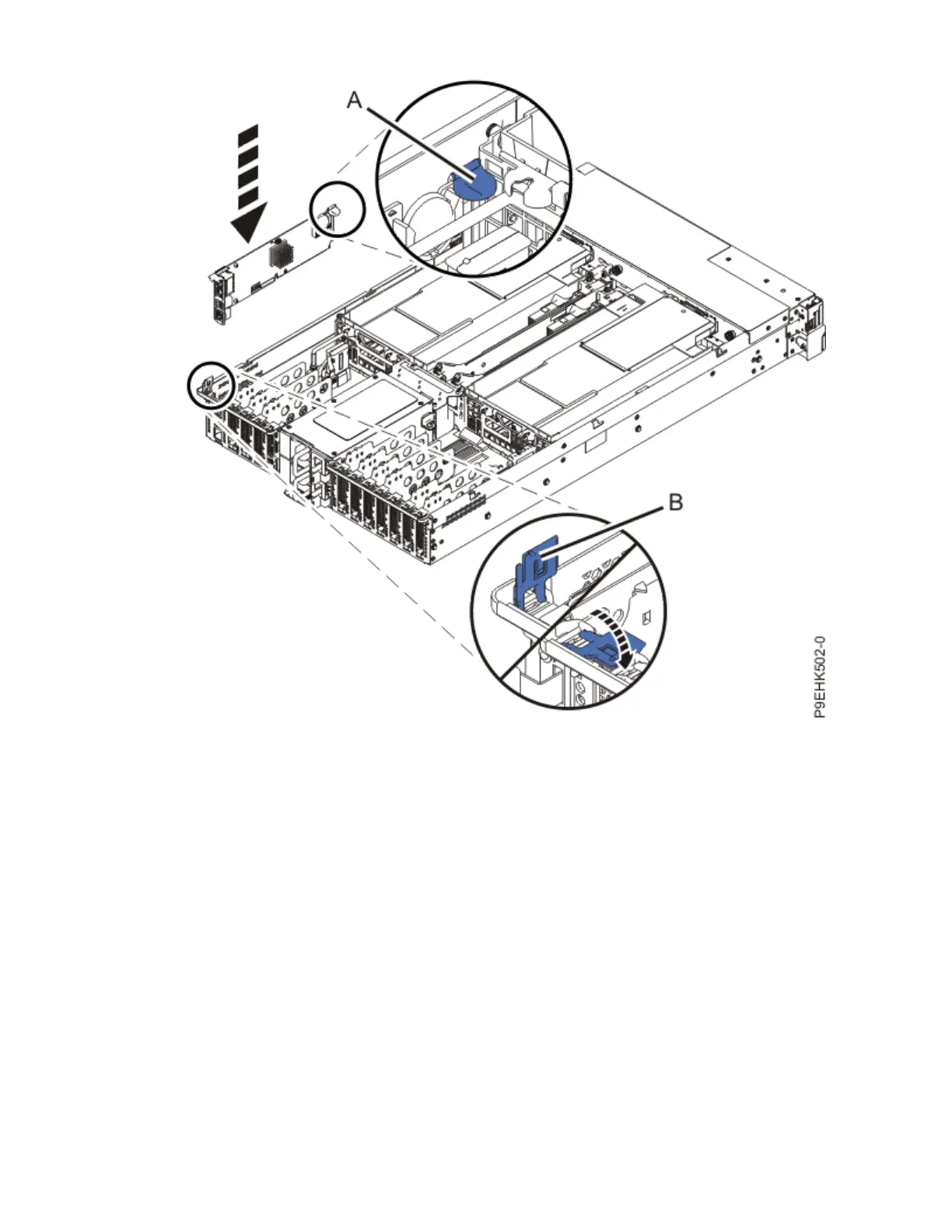

Figure 111. Installing the service processor card into slot P1-C1
23. Attach the rear USB cable:
a) Insert the rear USB cable housing (A) into the PCI adapter slot at the rear of the system as shown
in the following gure.
Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,
or 9223-22S 111
