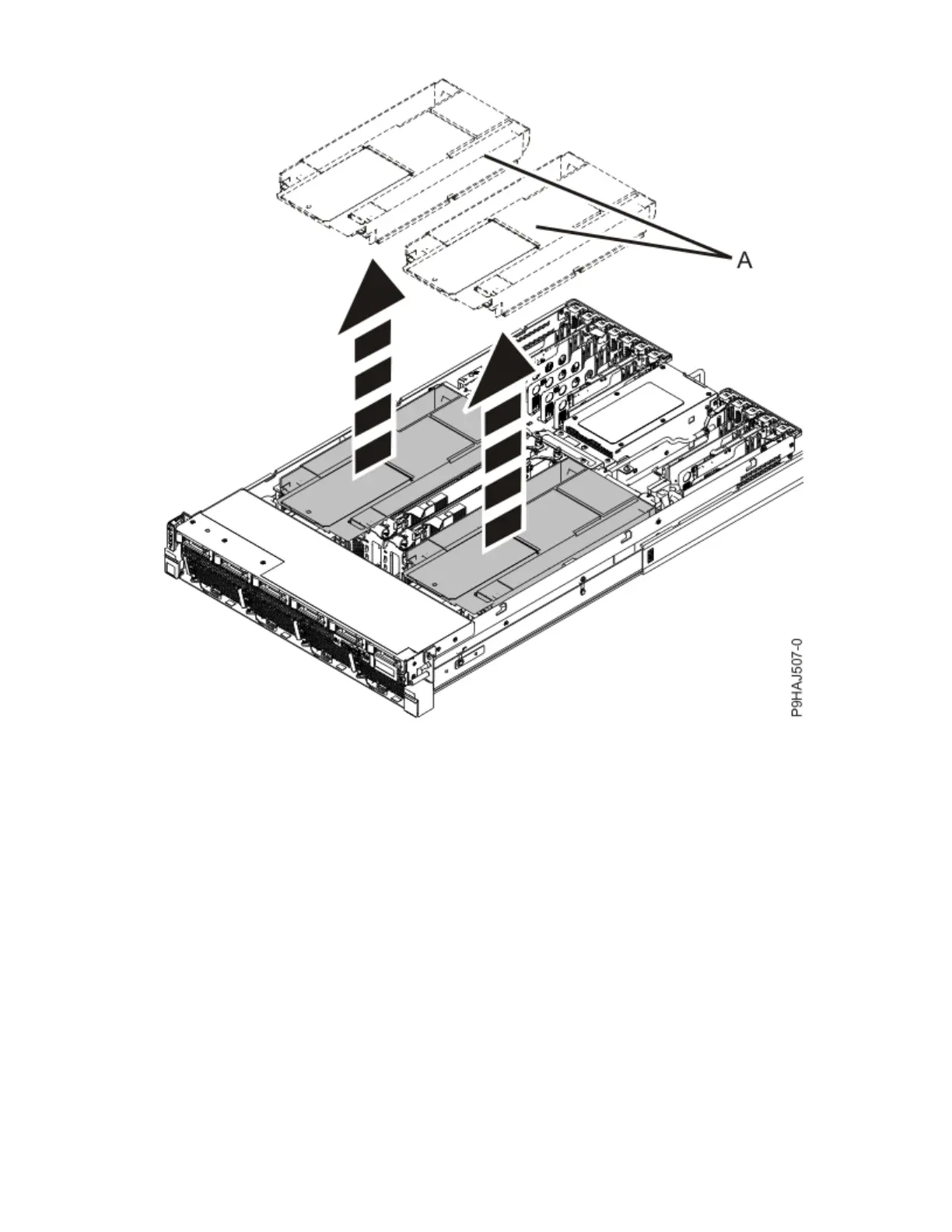

Figure 10. Removing the air baffle

3. Remove the PCIe adapters:

a) Label and disconnect all external cables that are attached to the adapters.

b) Record the slot number and location of each adapter being removed. See the following gure.

Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,

or 9223-22S 13
