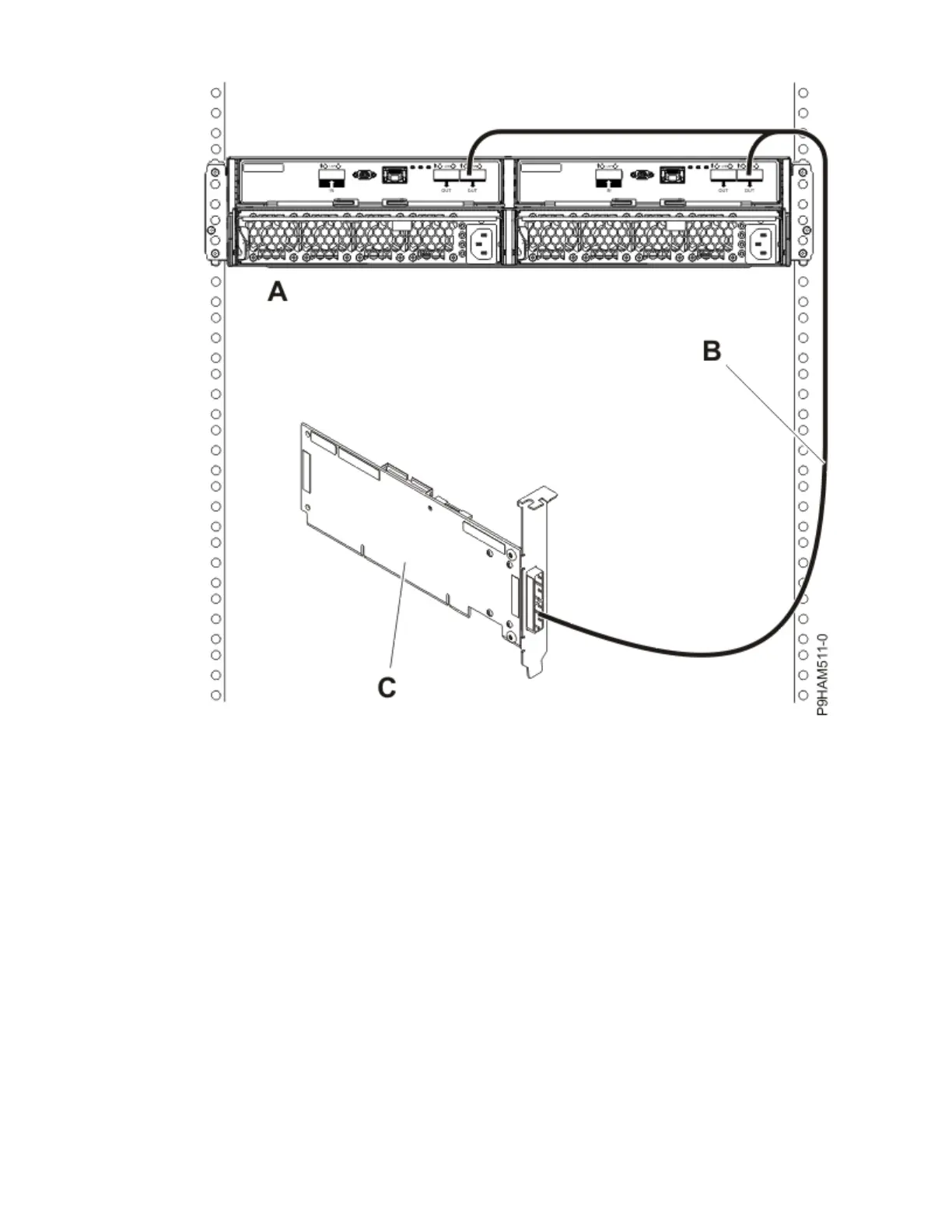

Figure 47. Mode 1 connection of a 5887 enclosure by using a YO cable to a single SAS adapter
2. Single SAS adapter to two 5887 enclosures by using a mode 1 connection.
• 5887 enclosures with two sets of 24 hard disk drives (HDDs).
• Connection using SAS YO cables to connect to the 5887 enclosures.
Site and hardware planning
125
