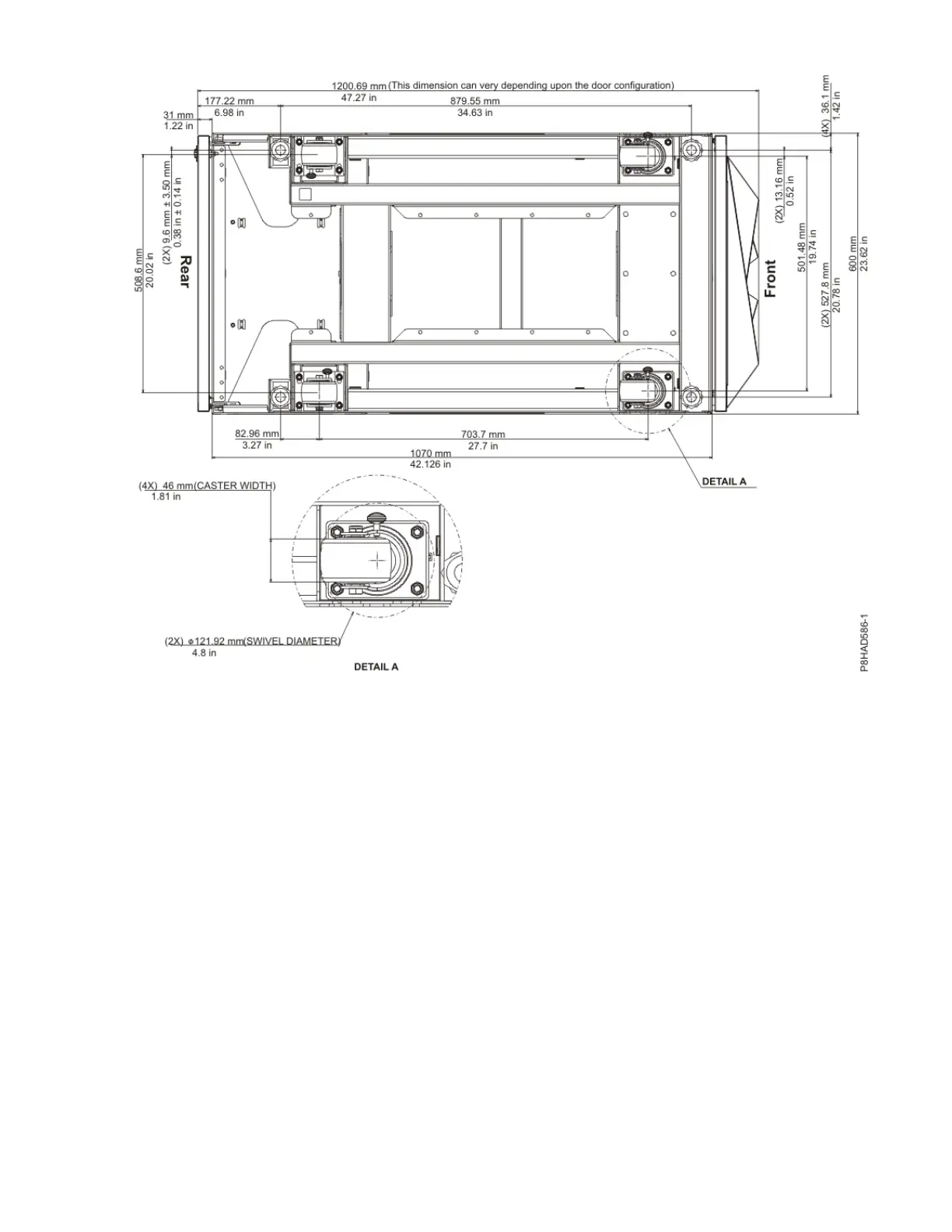

Figure 16. Caster and leveler locations
Cabling the 7965-S42 rack
Learn about the different cable routing options available for the 7965-S42 rack.
Cabling within the rack
Side cable channels are available in the rack to route cables. Three cable channels are on each side of the
rack.
Site and hardware planning
55
68
70
Table of Contents
Default Chapter
3
Table of Contents
3
Safety Notices
5
Site and Hardware Physical Planning Overview
15
Planning Activities
17
Planning Task Checklist
17
General Considerations
17
Site Preparation and Physical Planning Guidelines
18
Site and Hardware Planning
21
Hardware Specification Sheets
21
Server Specifications
21
Expansion Unit and Migration Tower Specifications
32
Rack Specifications
36
Hardware Management Console Specifications
78
Rack Switch Specifications
81
Rack Installation Specifications for Racks that Are Not Purchased from IBM
84
Planning for Power
92
Determining Your Power Requirements
92
Plugs and Receptacles
94
Modification of IBM-Provided Power Cords
109
Uninterruptible Power Supply
110
Power Distribution Unit and Power Cord Options for 7014, 7953, and 7965 Racks
111
Calculating the Power Load for 7188 or 9188 Power Distribution Units
119
Planning for Cables
121
Cable Management
121
Planning for Serial-Attached SCSI Cables
125
Notices
153
Accessibility Features for IBM Power Systems Servers
154
Privacy Policy Considerations
155
Trademarks
155
Electronic Emission Notices
155
Class a Notices
156
Class B Notices
159
Terms and Conditions
161
