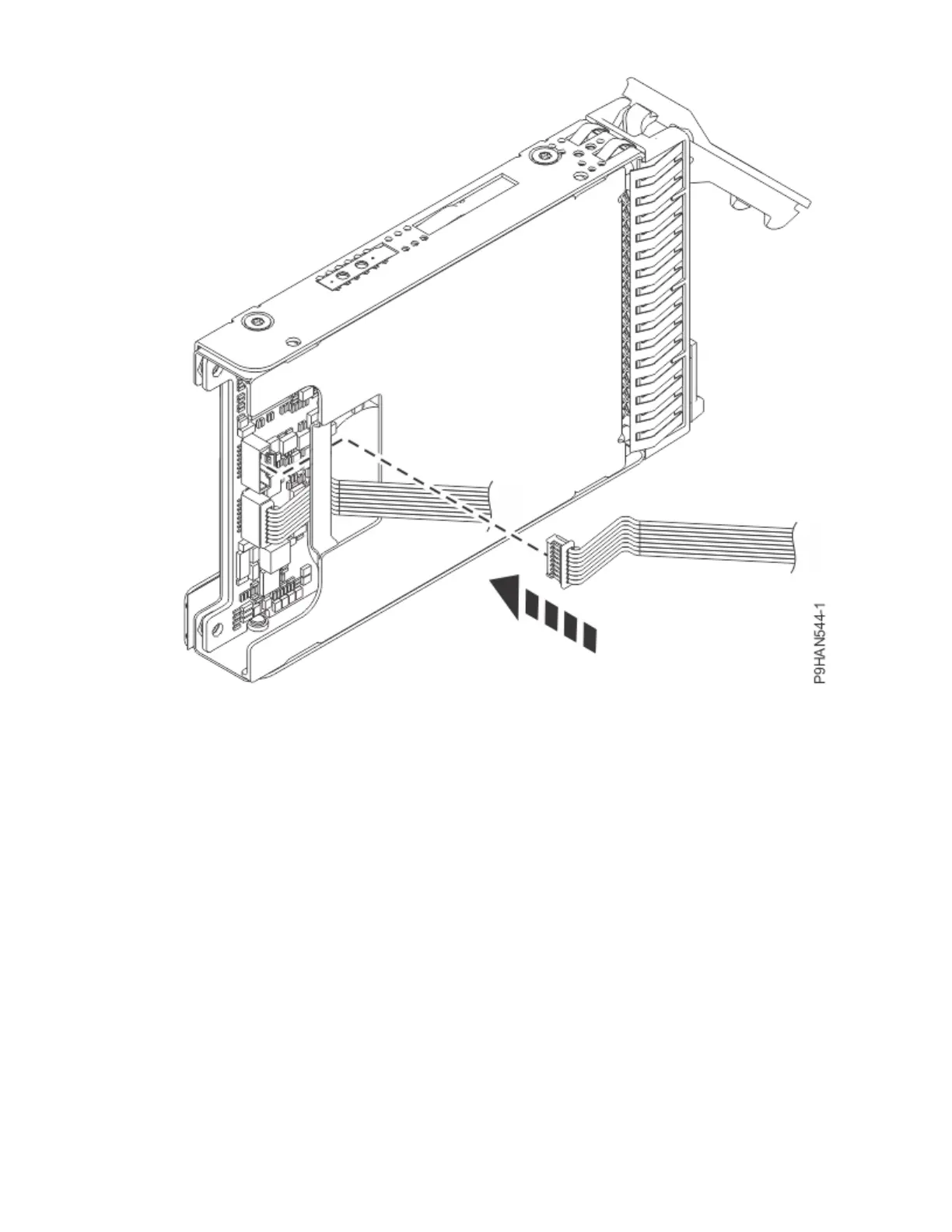

Figure 90. Connecting the BPM cable
h) Rotate the BPM back down into the BPM tray.
i) Slide the BPM forward by using the drive handle.
j) Push BPM handle (A) until the BPM handle locks as shown in the following gure.
90
Power Systems: System backplane
