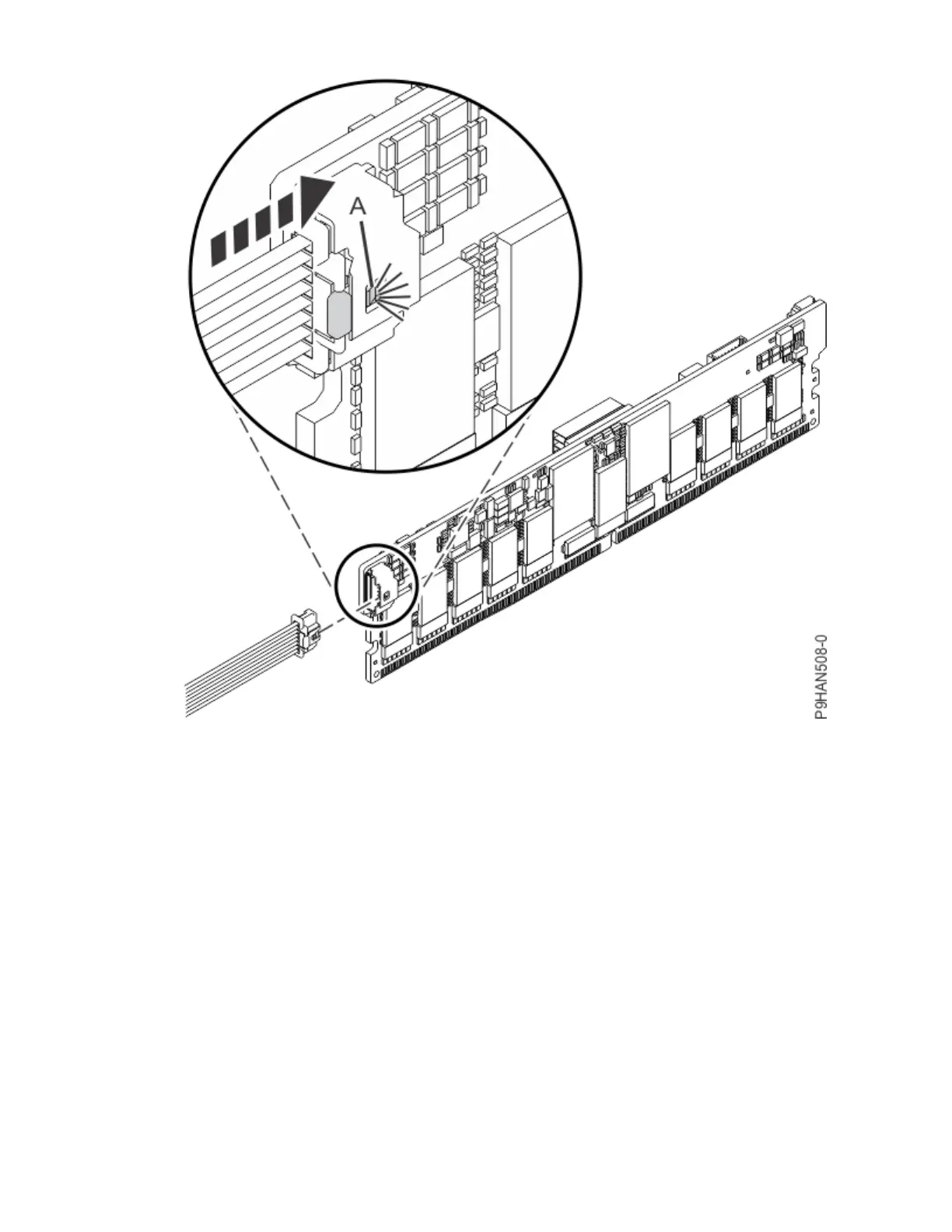

Figure 99. Connecting the BPM cable to the NVDIMM

c) Ensure that the locking tabs of the NVDIMM connector are open. Slowly press the NVDIMM

straight down, rmly into the slot, until the locking tabs lock into place. See the following gure.

Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,

or 9223-22S 99
