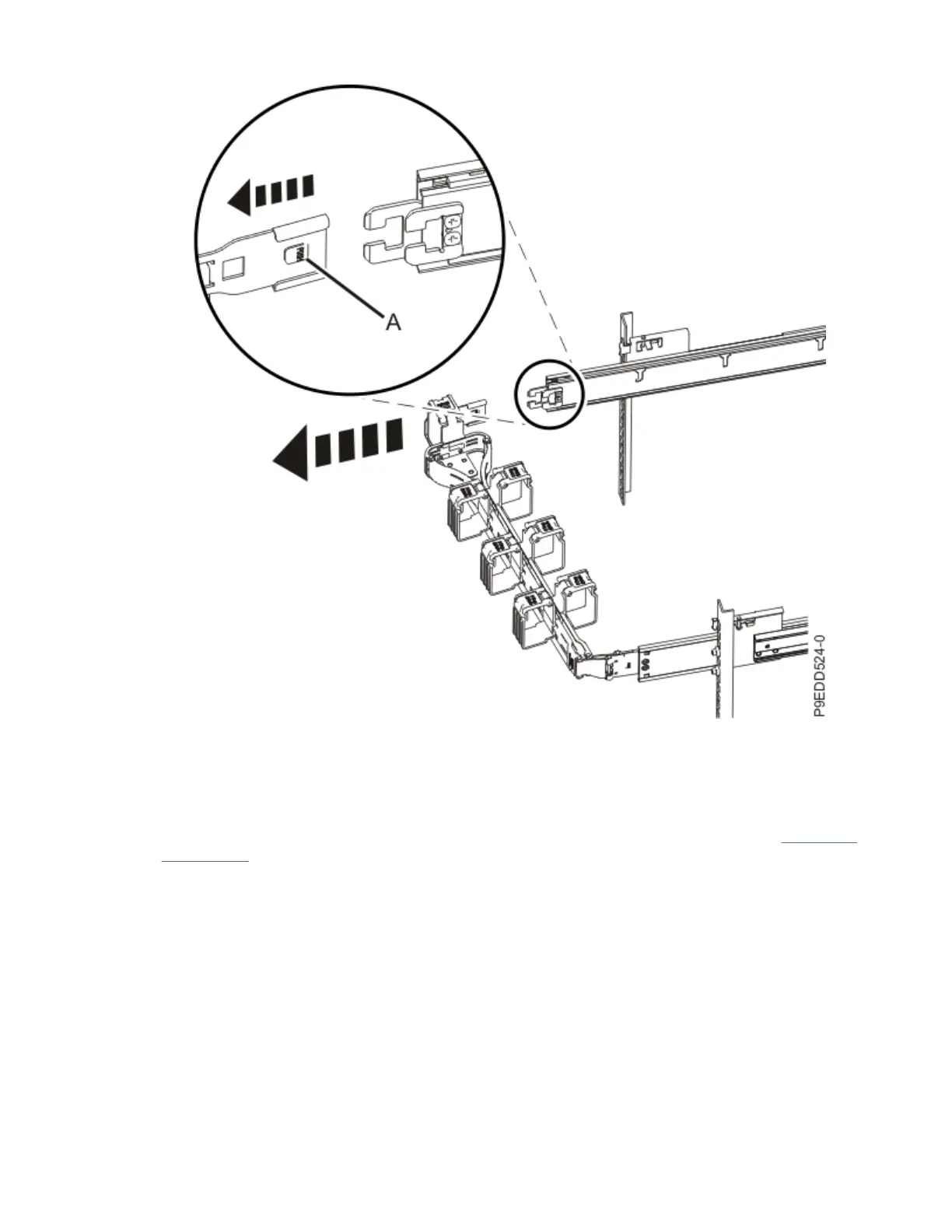

Figure 120. Releasing the cable management arm
b) Swing the cable management arm away from the system.
10. Slide each of the power supplies into the system until the latch locks each one in place.
11. Using your labels, reconnect the power cords (A) to the system unit.
Fasten the power cords to the system using the hook-and-loop fasteners (B) as shown in Figure 121
on page 121.
120
Power Systems: System backplane
