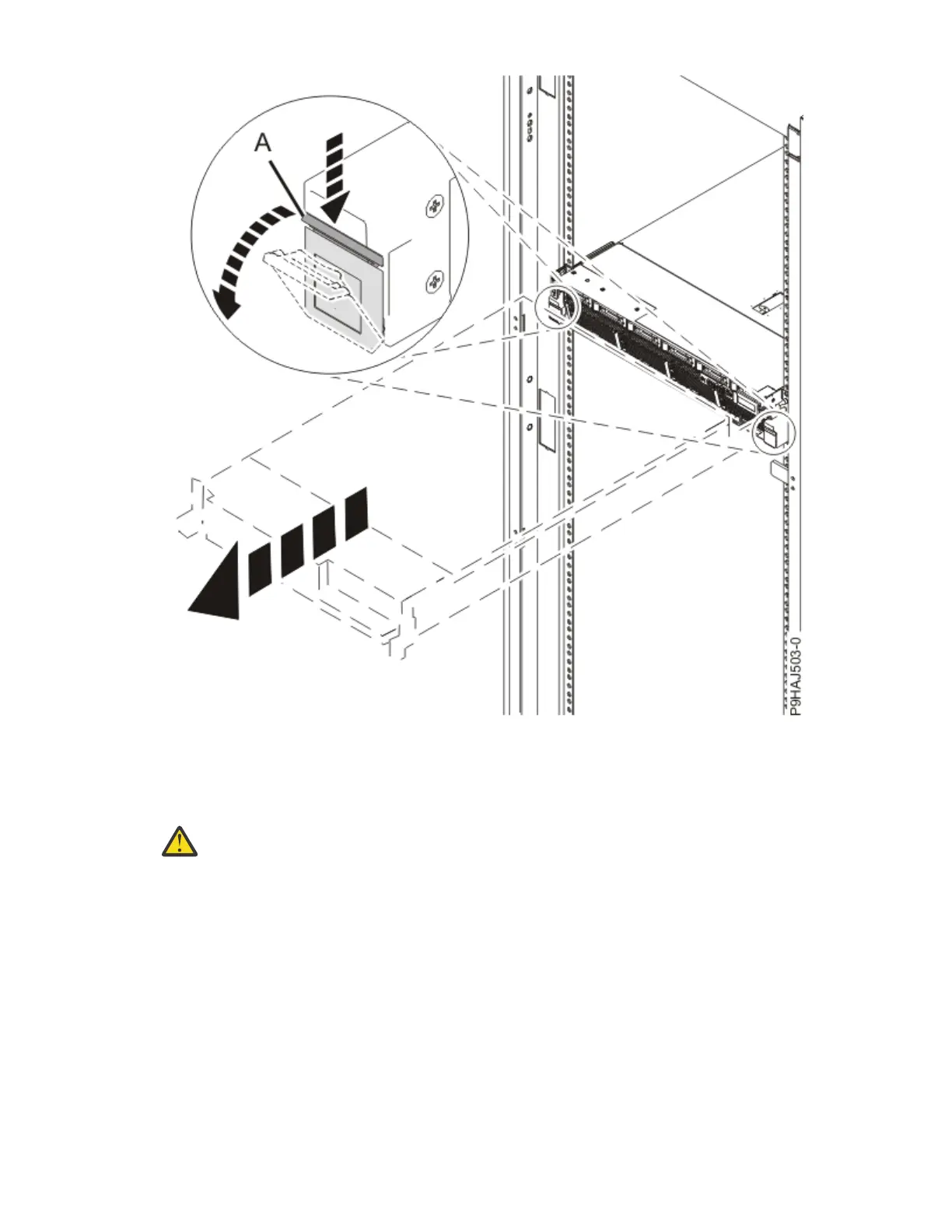

Figure 6. Releasing the side latches
15. Release the service access cover latch by pushing the release latch (A) in the direction shown.
16. Slide the cover (B) off the system unit. When the front of the service access cover clears the upper
frame ledge, lift the cover up and off the system unit.
Attention:
Operating the system without the service access cover on for more than 10
minutes when the system power is turned on might damage the system components.
Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,
or 9223-22S 9
