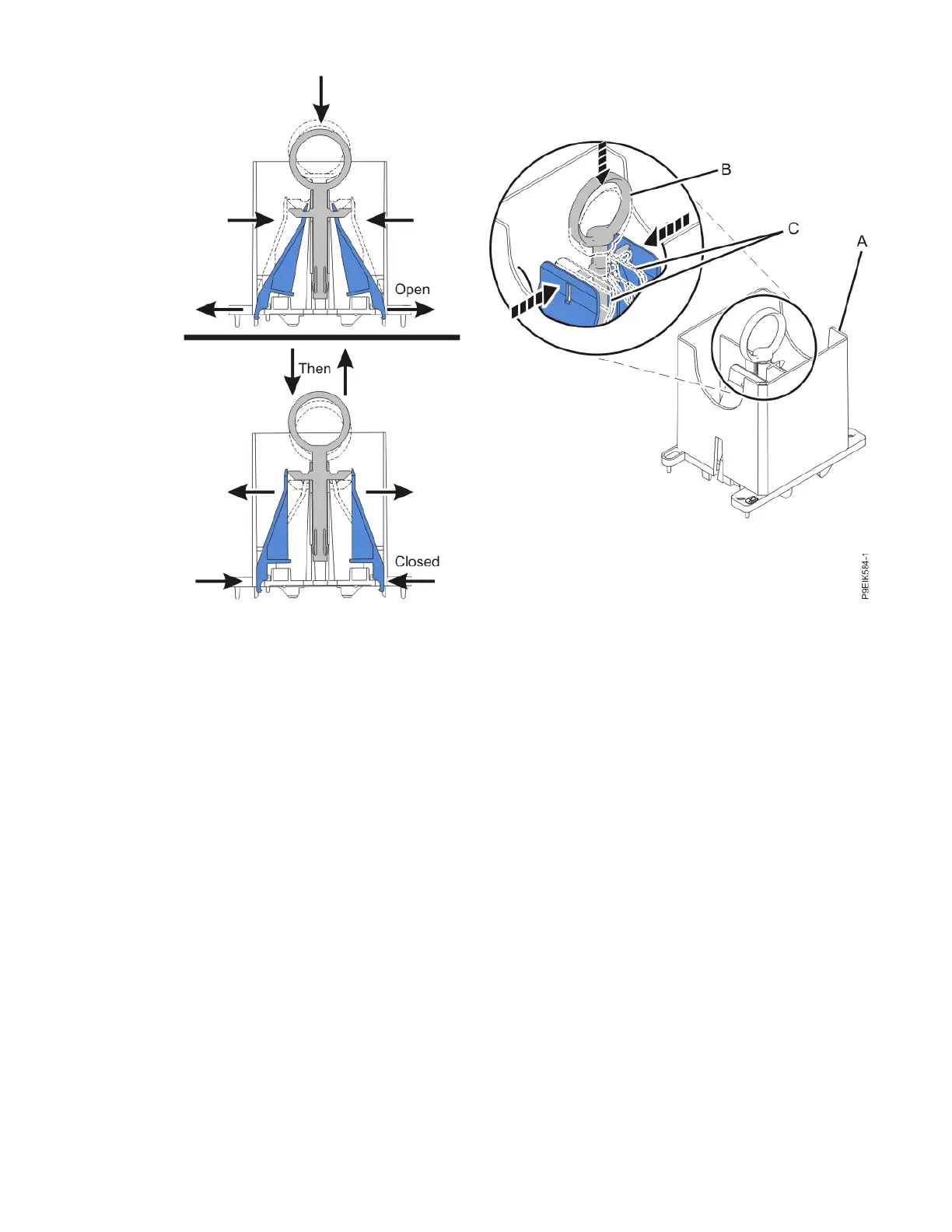

Figure 52. Ensuring the removal tool is in the open position
d) Lower the tool over the system processor module by ensuring the two guide pins (A) are inserted
into the alignment holes (B) on each side of the tool. Ensure that the chamfered edge on the tool
aligns with the chamfered edge of the processor (C).
54
Power Systems: System backplane
