Page #92 background imageLoading...
Page #92 background image

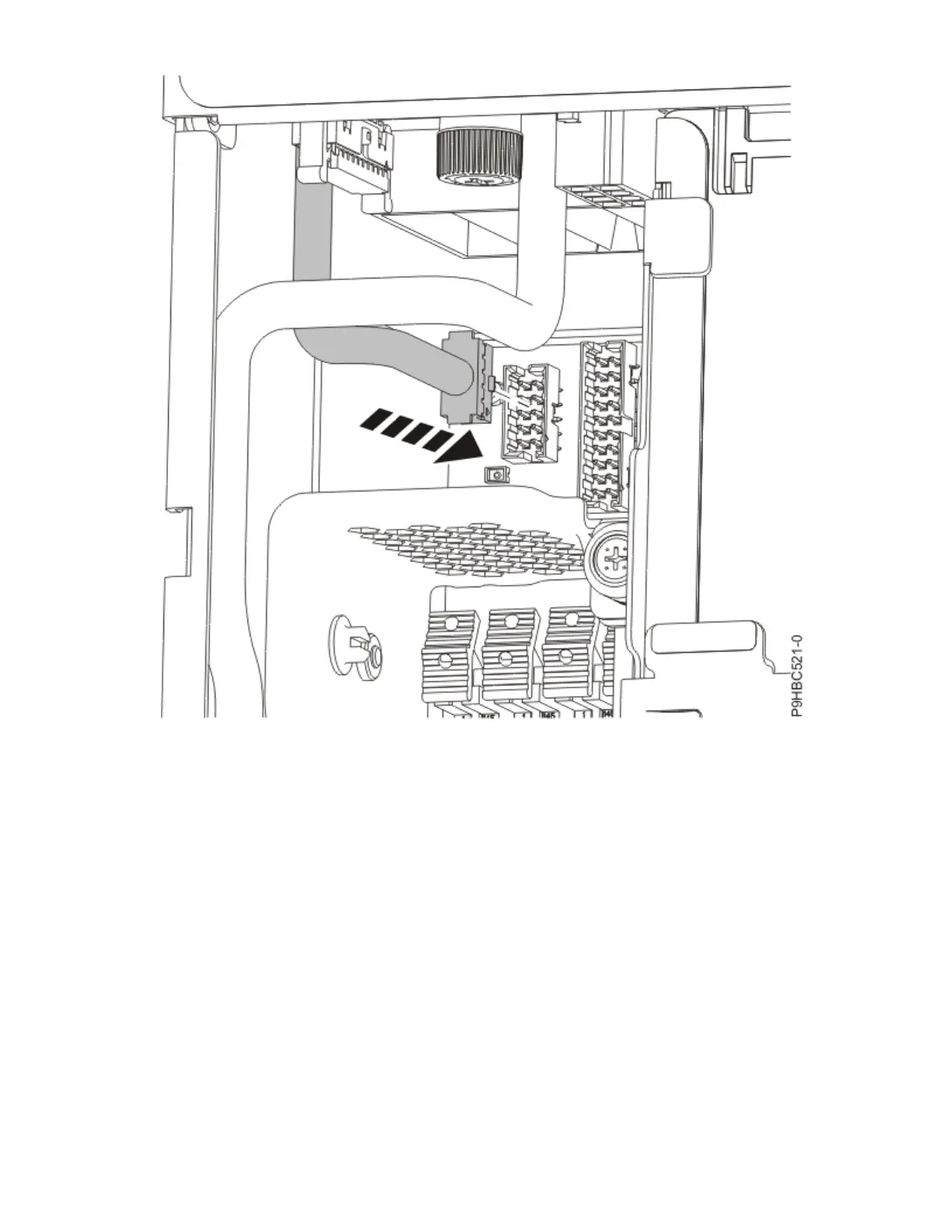

Figure 78. Connecting the control panel display cable to the system backplane
8. Reconnect the control panel cable to the system backplane as shown in the following gure.
78
Power Systems: System backplane
