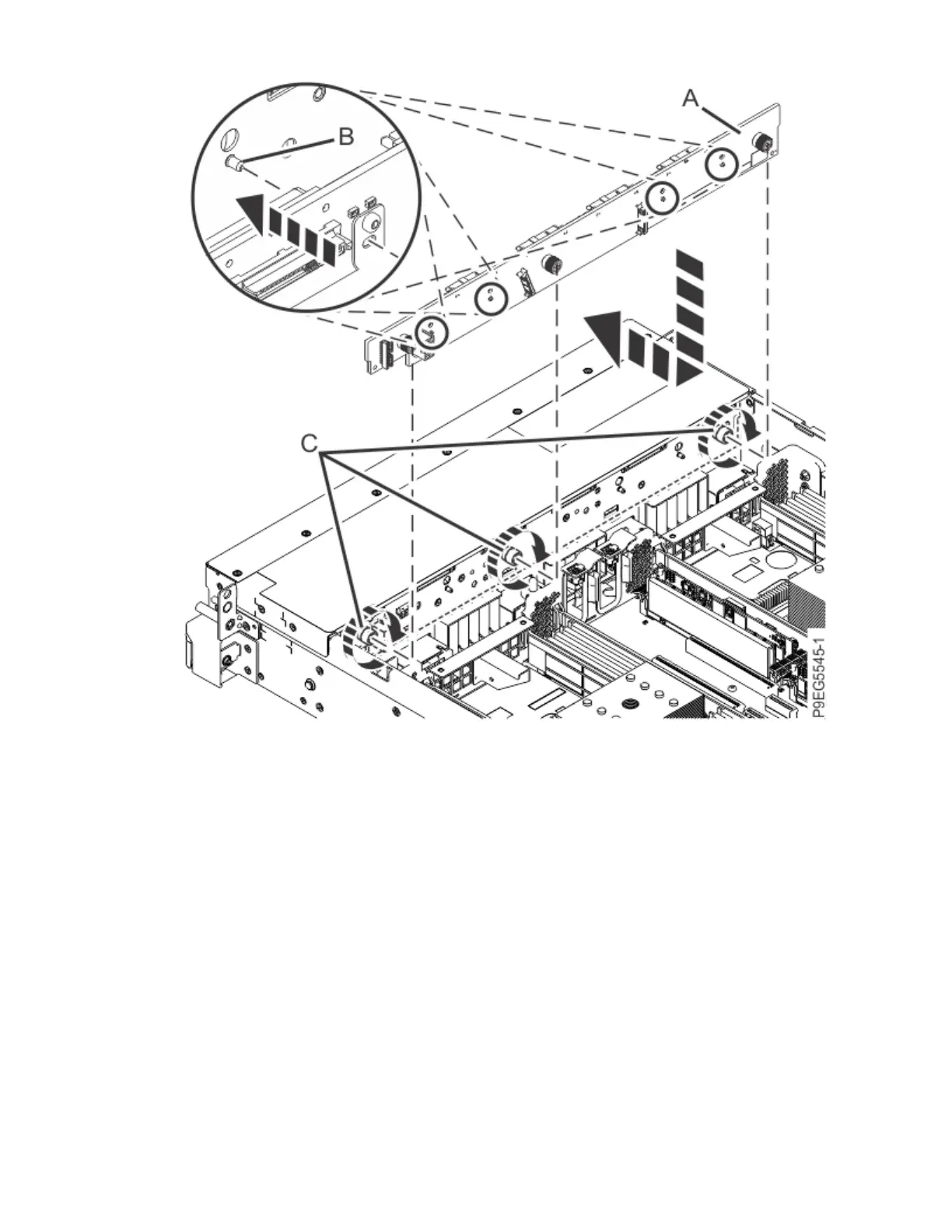

Figure 83. Replacing the NVMe drive backplane
b) Carefully tighten each of the three captive thumbscrews (C) to secure the NVMe drive backplane
to the system's chassis, as shown in the previous gure.
c) Using your labels, reconnect the signal cable (A) and the power cable (B) to the NVMe drive
backplane as shown in the following gure.
Note: If your system has a BPM, do not reconnect the disk drive power cable to the disk drive
backplane until directed to do so in a later step. Connect the power cable to the system backplane
only.
Push the connectors in until the latch clicks.
Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,
or 9223-22S 83
