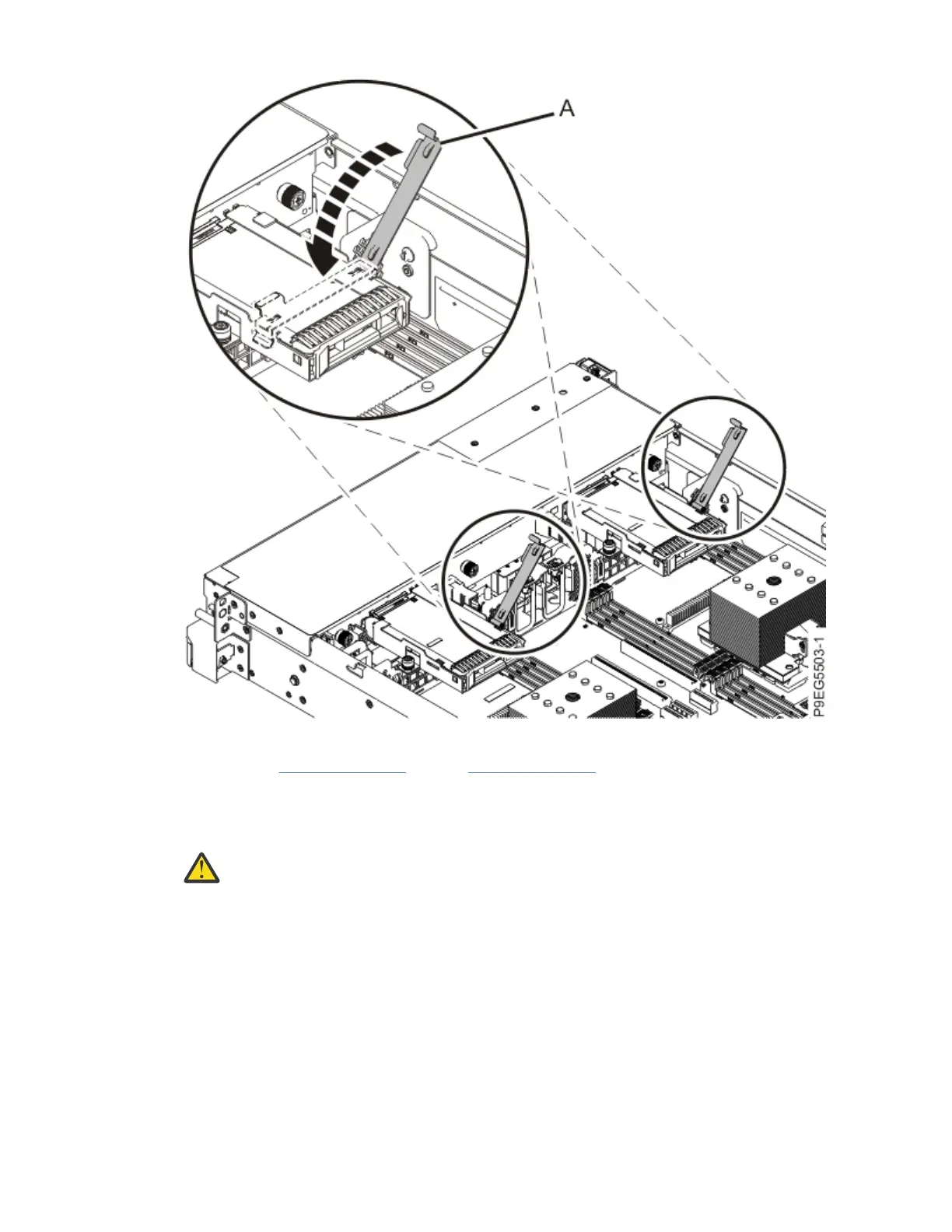

Figure 98. Closing the drive holder lever
f) Repeat steps “16.a” on page 94 through “16.e” on page 97 for the second internal drive.
17. Replace the non-volatile dual in-line memory modules (NVDIMMs), if present. Otherwise, continue
with the next step.
a) Grasp the NVDIMM along its edges and align it with the slot.
Attention:
NVDIMMs are keyed to prevent an NVDIMM from being installed incorrectly.
Note the location of the key tab within the NVDIMM connector before you attempt to install
the NVDIMM.
b) Connect the BPM cable to the NVDIMM. Push the connector in until the connector latch (A) clicks.
See the following gure.
98
Power Systems: System backplane
