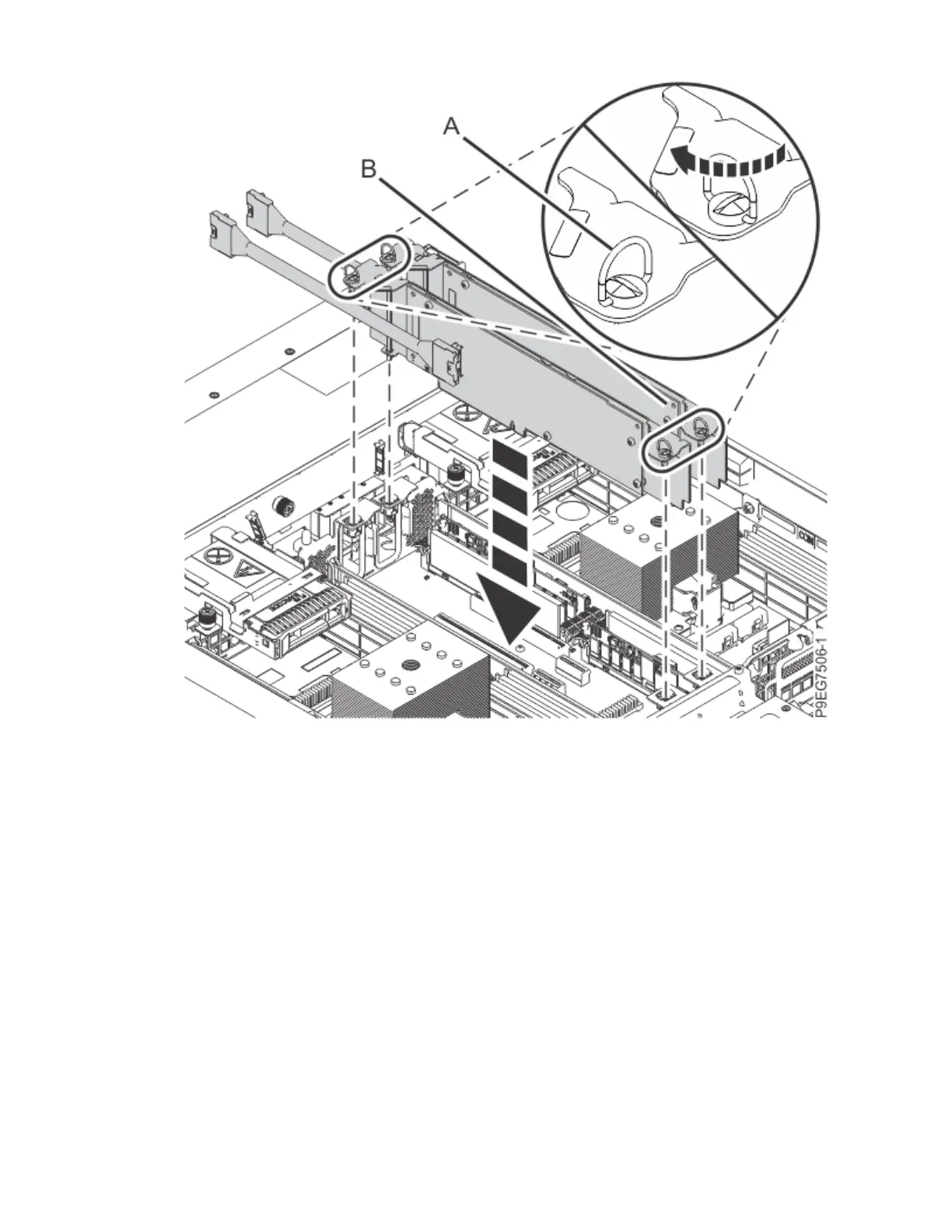

Figure 101. Seating the NVMe U.2 pass-thru card
d) Connect the NVMe cable to the port on the NVMe drive backplane.
Use the following information to determine in which connector to plug the NVMe cable into the
NVMe drive backplane:
If you have one NVMe U.2 pass-thru card, it is installed in slot P1-C49 and a ller is in slot P1-
C50.
The NVMe cable connects from port (J1) on the NVMe drive backplane to port (J1) on the
NVMe U.2 pass-thru card. See the following gure.
Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,
or 9223-22S 101
