The following shows the receptacle or inline connector (the power source, a mirror

image of the plug).

f2c01862

Vac

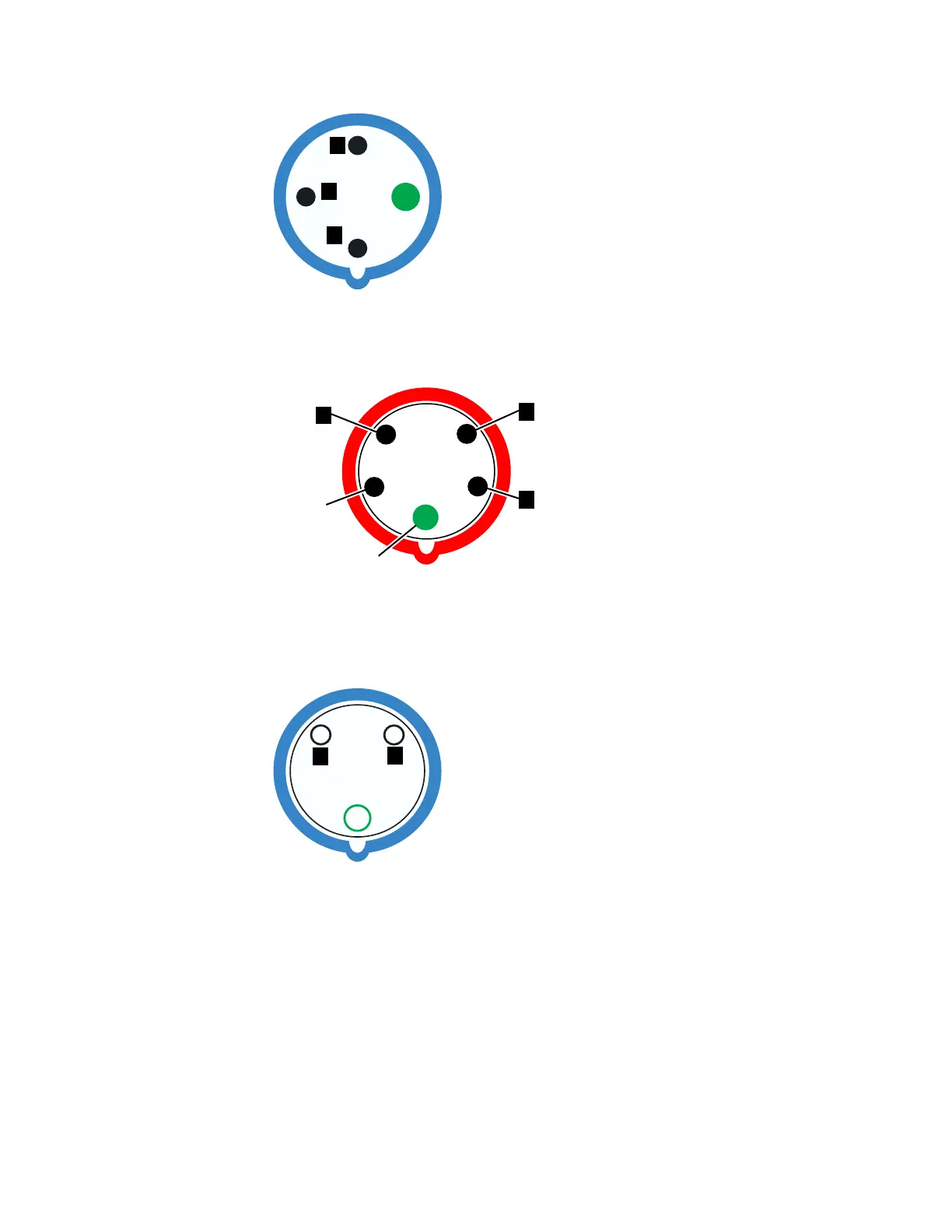

Figure 27. Three-phase low voltage (200 - 240 V) 60A or 30A, IEC60309 cable connector

pins

Ground

Vac

Neutral

f2c01938

Figure 28. Three-phase high voltage (380 - 415 V) 30A, IEC60309 cable connector pins

Vac

f2c01859

Vac

Figure 29. Single-phase, 200 - 240 V, 60A, IEC60309 customer outlet pins

Chapter 6. Delivery and installation requirements 161
