IBM E850C Site And Hardware Planning

Note:
v No cascading allowed for the 5887 storage drawer.
v The 5887 storage drawers are connected to same numbered port on each adapter.

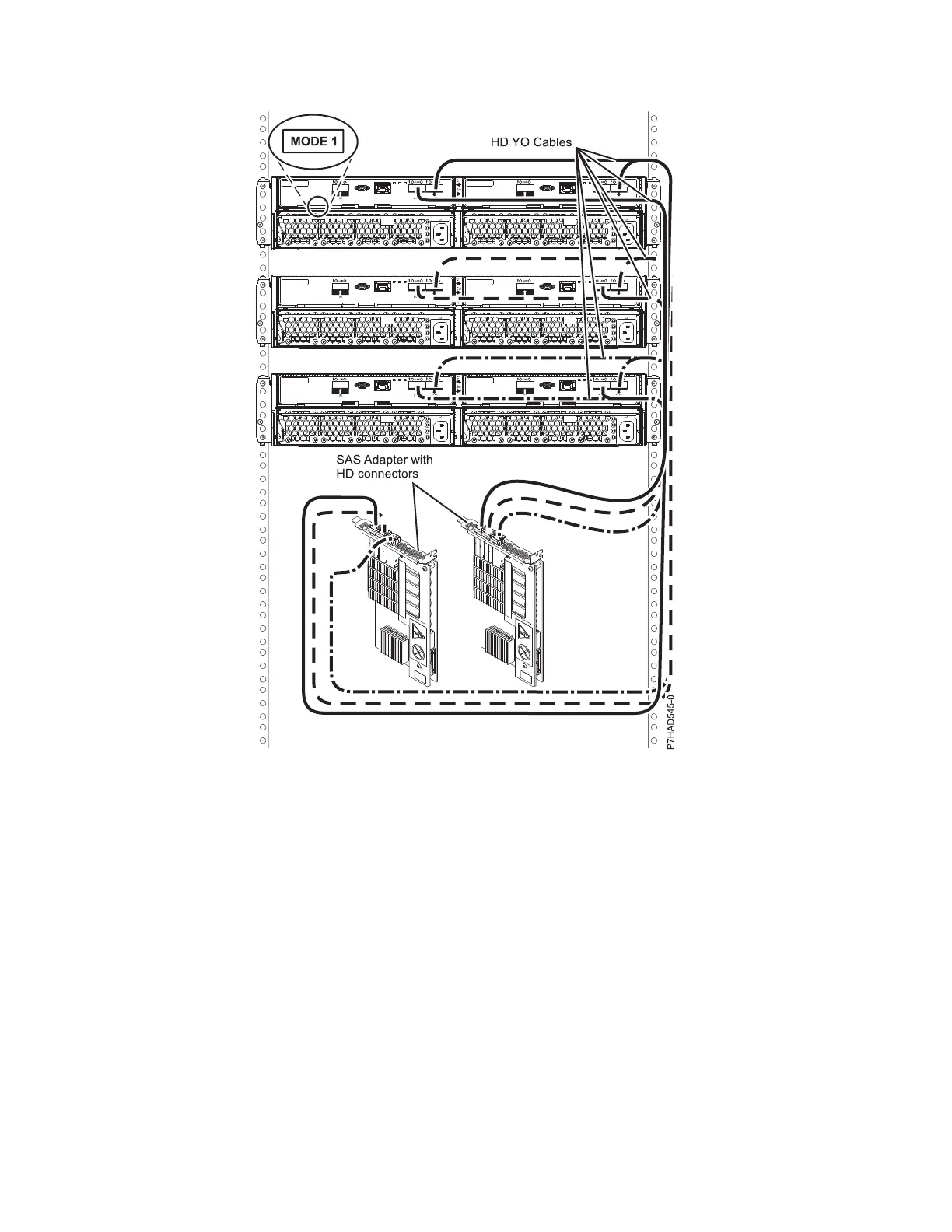

Figure 75. Two RAID SAS adapters with HD connectors to three disk expansion drawers in a multi-initiator HA mode
144 Site and hardware planning
