Cabling overhead
Front and rear rectangular cable access openings located on the top of the rack cabinet allow cables to be
routed up and out of the rack. Cable access covers are adjustable by loosing the side screws and sliding
the covers forward or backward.
Side stabilizing outriggers:
Learn about the side stabilizing outriggers available for the 7953-94X and 7965-94Y rack.
The outriggers are stabilizers with wheels installed on the sides of the rack cabinet. The outriggers can be
removed only after the rack is in the final location and will not be moved more than 2 m (6 ft) away in
any direction.
To remove the outriggers, use a 6 mm hex wrench to remove the four bolts that attach each outrigger to
the rack cabinet.
Keep each of the outriggers and bolts in a safe place for future use when moving the rack. Reinstall the
outriggers to move the rack cabinet to another location that is greater than 2 m (6 ft) away from its
current location.

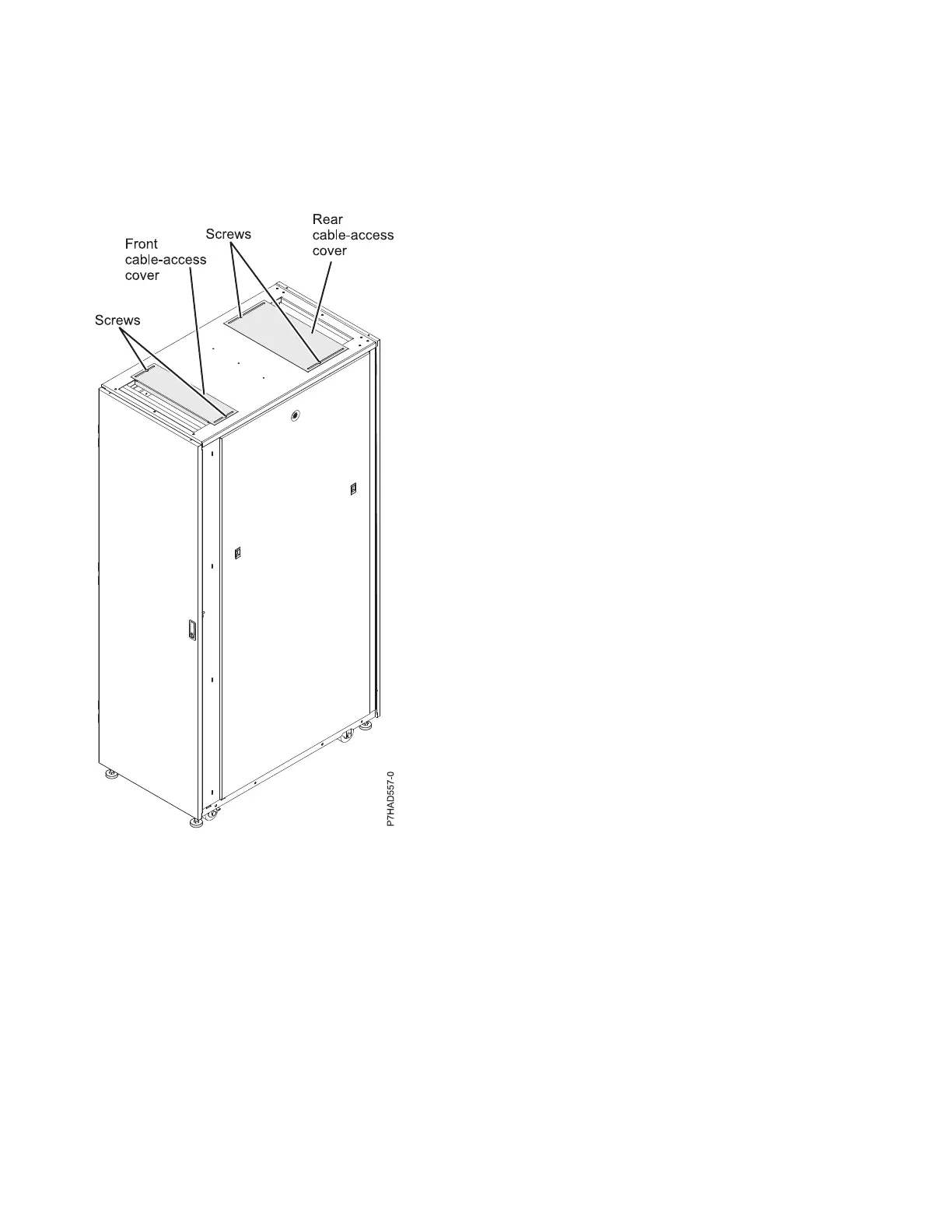

Figure 29. Cable access covers
52 Site and hardware planning
