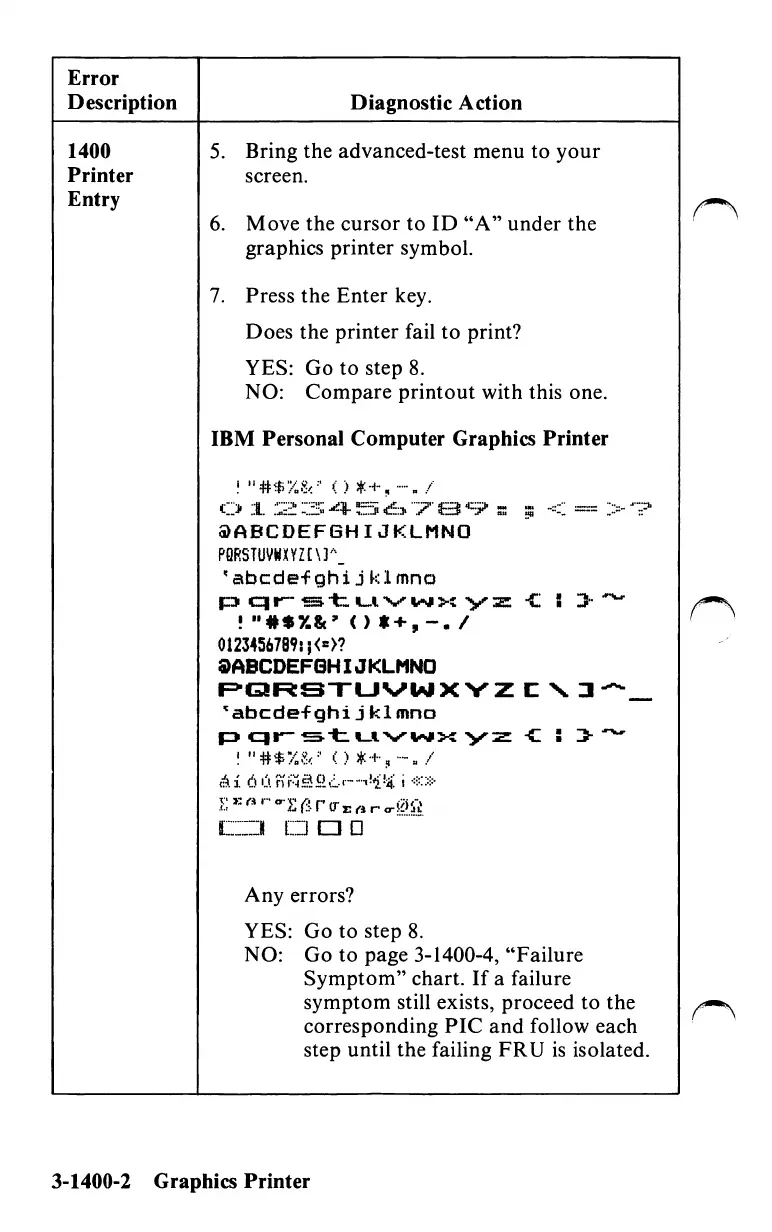

IBM PCjr Hardware Maintenance And Service

Error
Description
Diagnostic Action
1400 5. Bring the advanced-test menu to your
Printer screen.
Entry
6. Move the cursor to ID "A" under the
graphics printer symbol.
7. Press the Enter key.
Does the printer fail to print?
YES: Go to step 8.
NO: Compare printout with this one.
IBM Personal Computer Graphics Printer
i /
t;> ± 5 '"7" Q s 5
a)ABCDEFGHIJKLMNO
PflRSTUVKtVZIM".
'abcdefghi j klmno
|3 C|r-s-ti V'-s: -C S >
! "#*y.8(' ()/
0123456789:;<=>?
9ABCDEFQHIJKLMNO
P-QRSTUVUJX YZ C \ •
'abcde-f ghi j kl mno
p> cur-ui-v -C S > ^
1 /
Ai 6 6.n'ris!:9.cr--i'i'4 i •«:»•
E««'-<'E(?.r<rr«r<r0ft
8 1 • • •
Any errors?
YES: Go to step 8.
NO: Go to page 3-1400-4, "Failure
Symptom" chart. If a failure
symptom still exists, proceed to the
corresponding PIC and follow each
step until the failing FRU is isolated.
3-1400-2 Graphics Printer
