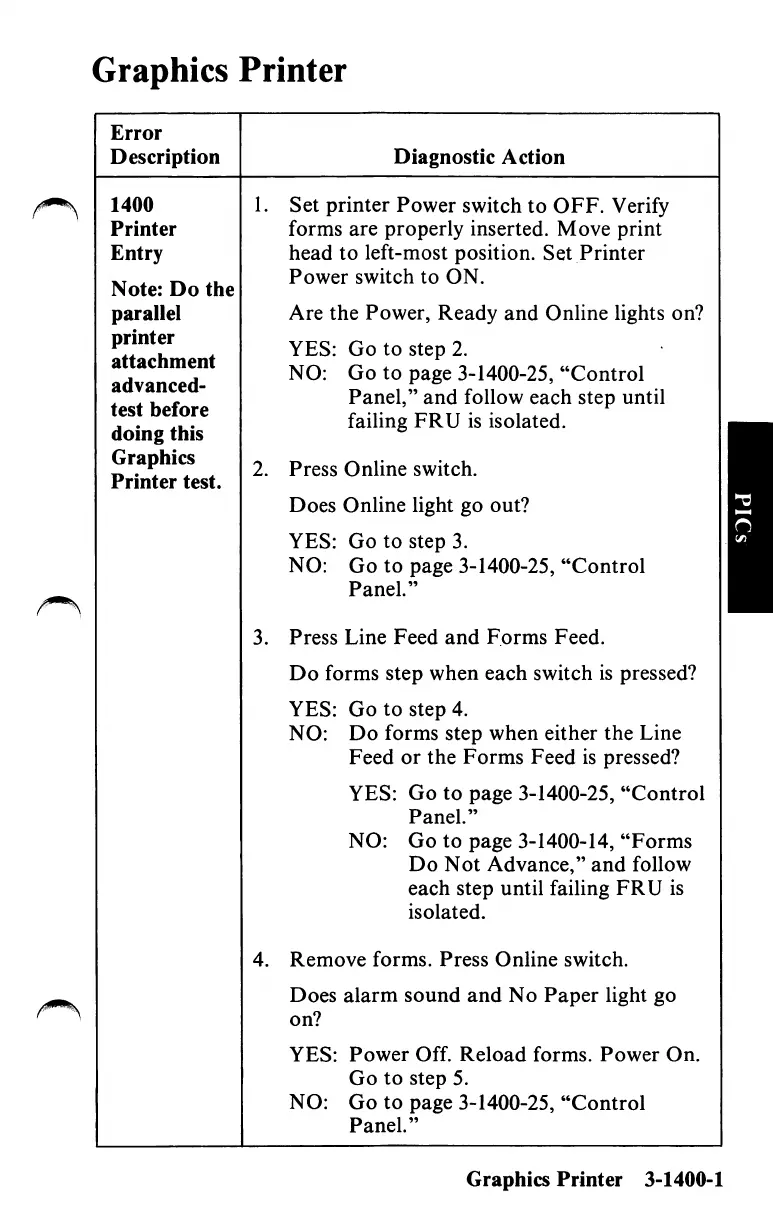

IBM PCjr Hardware Maintenance And Service

Graphics Printer
Error
Description
1400
Printer
Entry
Note: Do the
parallel
printer
attachment
advanced-
test before
doing this
Graphics
Printer test.
Diagnostic Action
1. Set printer Power switch to OFF. Verify
forms are properly inserted. Move print
head to left-most position. Set Printer
Power switch to ON.
Are the Power, Ready and Online lights on?
YES:
Go to step 2.
NO: Go to page 3-1400-25, "Control
Panel," and follow each step until
failing
FRU is isolated.
2. Press Online switch.
Does Online light go out?
YES: Go to step 3.
NO: Go to page 3-1400-25, "Control
Panel."
3. Press Line Feed and Forms Feed.
Do forms step when each switch is pressed?
YES: Go to step 4.
NO: Do forms step when either the Line
Feed or the Forms Feed is pressed?
YES: Go to page 3-1400-25, "Control
Panel."
NO: Go to page 3-1400-14, "Forms
Do Not Advance," and follow
each step until failing FRU is
isolated.
4. Remove forms. Press Online switch.
Does alarm sound and No Paper light go
on?
YES: Power Off. Reload forms. Power On.
Go to step 5.
NO: Go to page 3-1400-25, "Control
Panel."
Graphics Printer 3-1400-1
