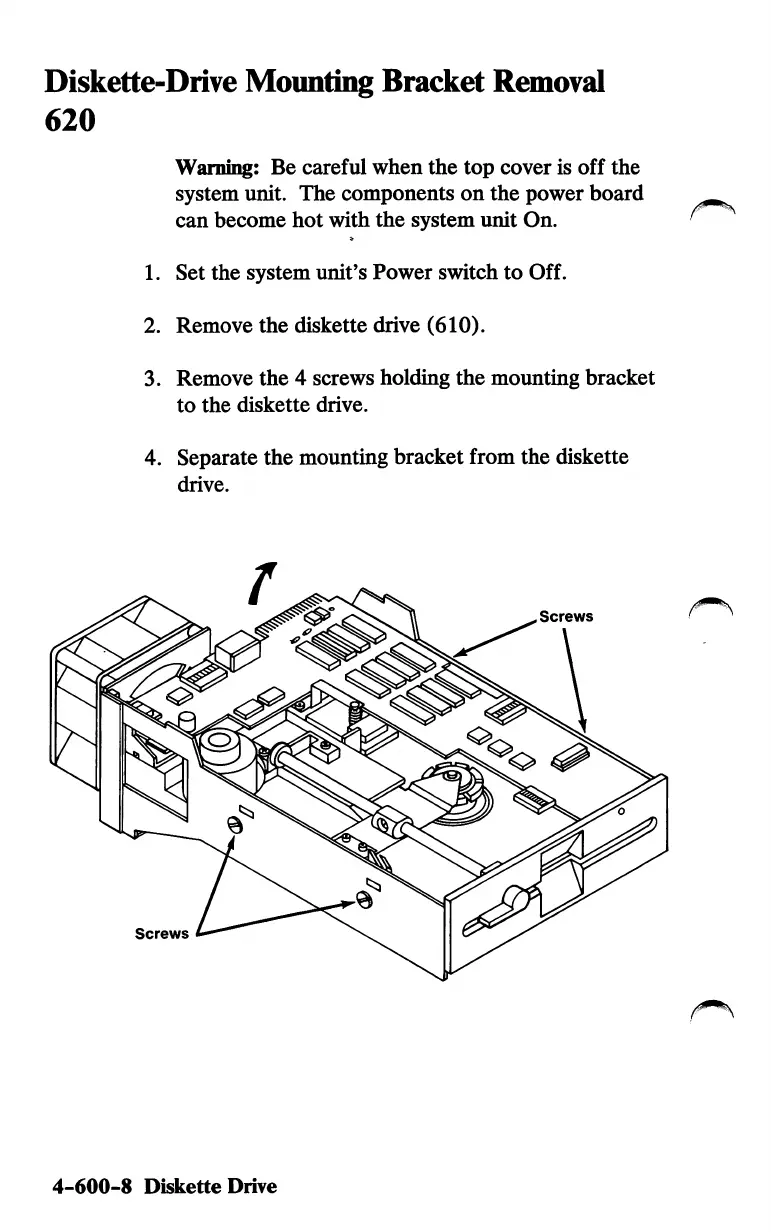

Diskette-Drive Moimttng Bracket Removal
620
Warning: Be careful when the top cover is off the
system unit. The components on the power board
can become hot with the system unit On.
1. Set the system unit's Power switch to Off.
2. Remove the diskette drive (610).
3. Remove the 4 screws holding the mounting bracket
to the diskette drive.
4. Separate the mounting bracket from the diskette
drive.
o
4-600-8 Diskette Drive
