Rear
Guide

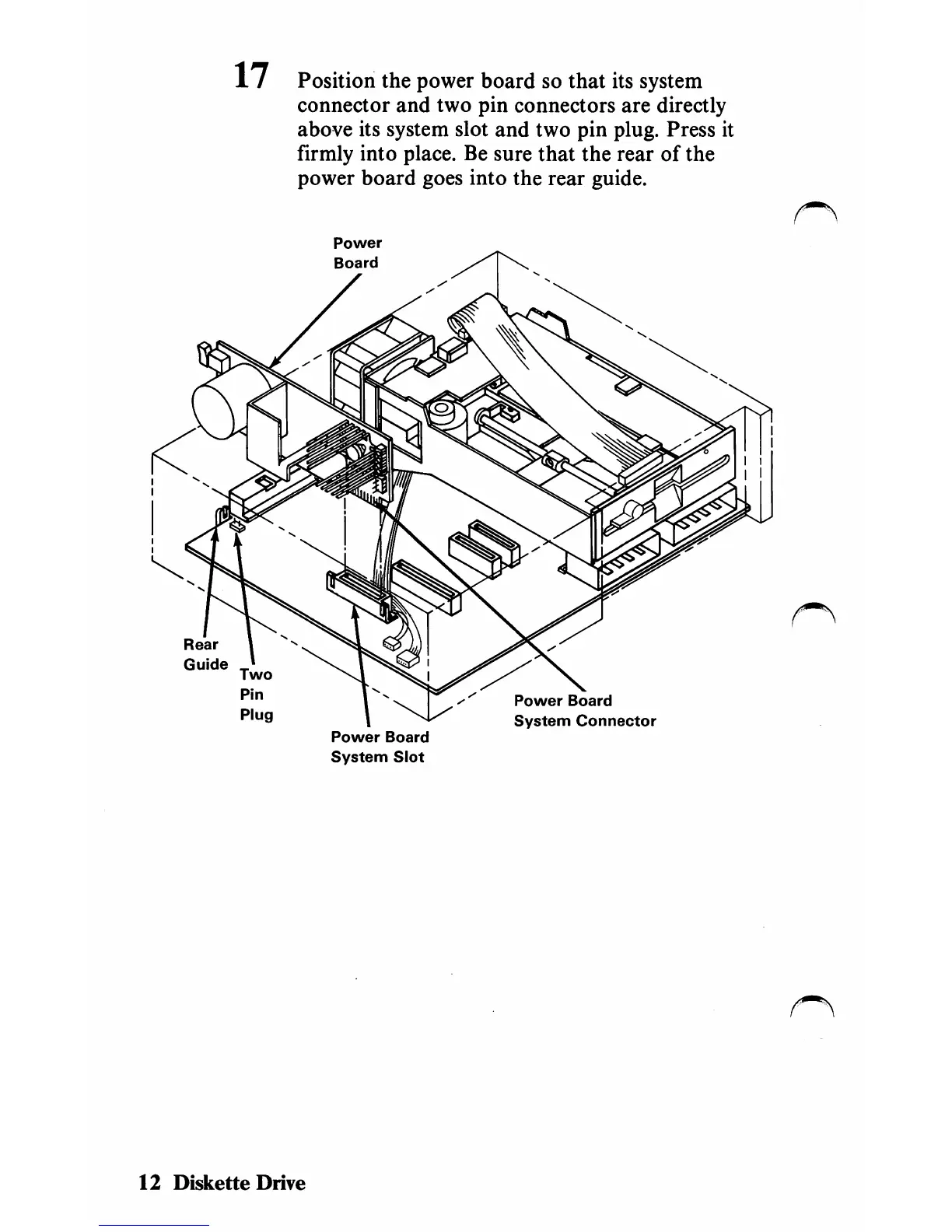

17
Position
the
power
board
so
that
its system
connector
and
two
pin
connectors
are
directly
above
its system slot
and
two
pin
plug. Press it
firmly
into
place. Be sure
that
the
rear
of
the
power
board
goes
into
the rear guide.
Power
Board
Power
Board
System
Slot
Power
Board
System
Connector
12
Diskette
Drive
