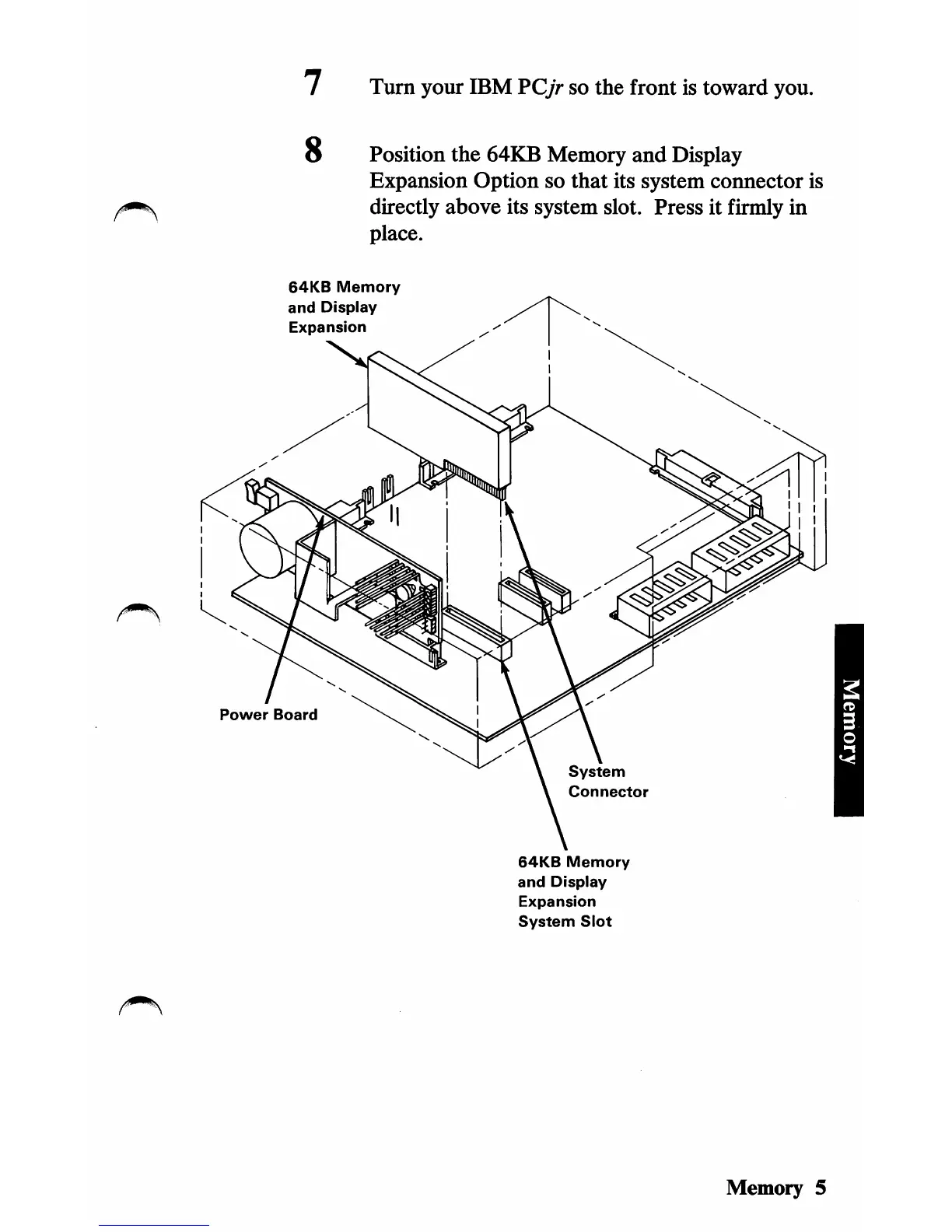

7 Turn
your
IBM
PC/r sothefrontis
toward
you.
8
Position
the
64KB
Memory
and
Display
Expansion
Option
so
that
its
system
connector
is
directly above its system slot. Press it firmly in
place.
64KB
Memory
and
Display
Expansion
Power
Board
System
Connector
64KB
Memory
and
Display
Expansion
System
Slot
Memory
5
