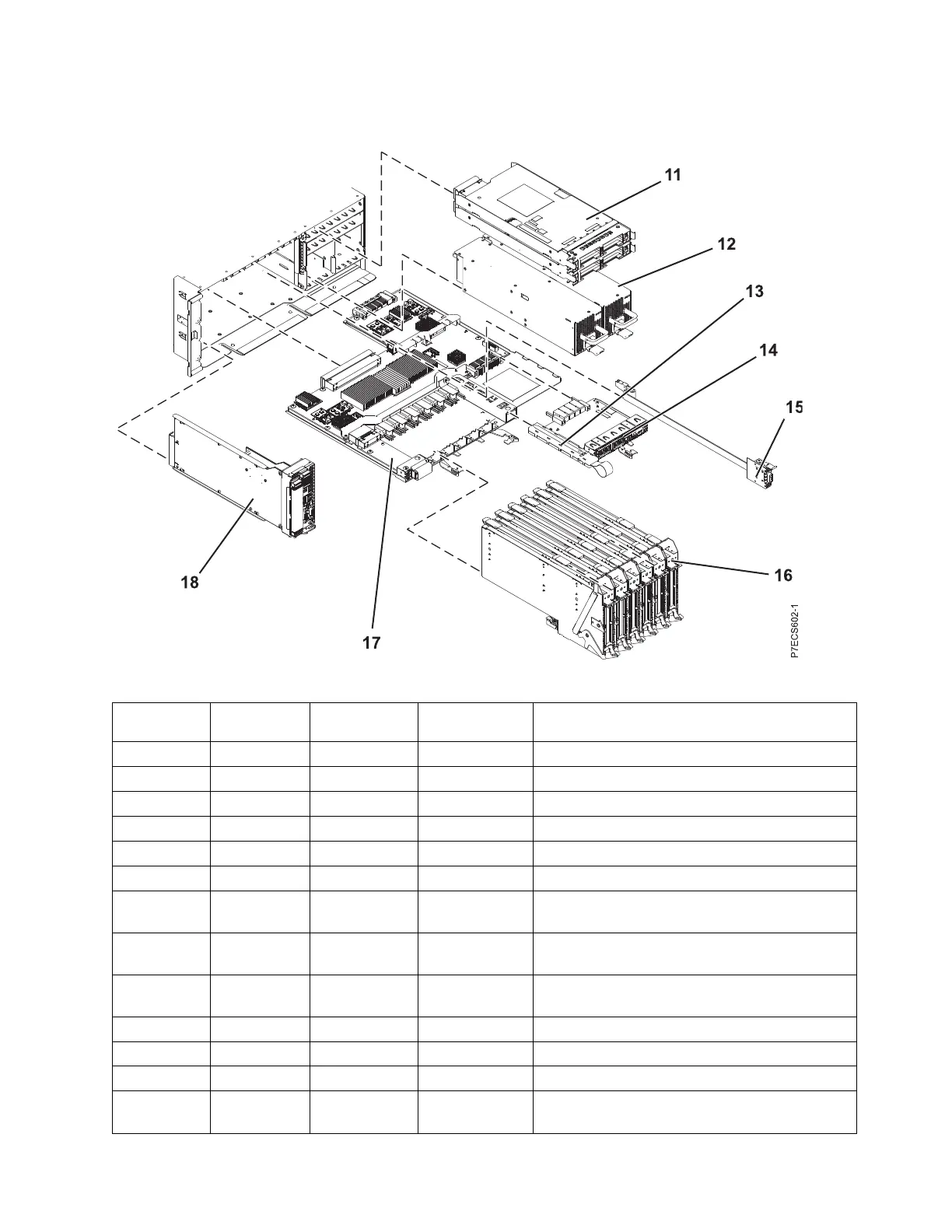

Final assembly (rear)
Table 137. Assembly
Index
number
CCIN Part number Units per
assembly
Description
11 2BC3 74Y0532 2 I/O hub 12X adapter card
11 2B94 00E1457 2 GX++ 2-port PCIe2 x8 adapter
12 2BED 00J0439 2 Power supply 1925 W
13 560B 00E3232 1 VPD card (8412-EAD)
13 52CF 00E0944 1 VPD card (9117-MMC or 9179-MHC)
13 521C 00E1757 1 VPD card (9117-MMD or 9179-MHD)
14 2B57 00E0784 1 Optical - 2 x 1 GbE and 2 x 10 GbE integrated
multifunction card
14 2B56 00E0778 1 Twinaxial - 2 x 1 GbE and 2 x 10 GbE integrated
multifunction card
15 44V7563 0 - 1 Internal SAS cable for triple-split disk drive
backplane
15 44V7564 0 - 1 Internal SAS cable for RAID
16 74Y3982 6 PCIe blind swap cassette
17 2B59 74Y3050 1 I/O backplane
18 2BBB 00E1248 1 FSP card (drawers 1 and 2) (9117-MMC or
9179-MHC)
Finding parts, locations, and addresses 257
