The following table provides location codes for parts that comprise the server.
Table 9. FRU location table
Failing item name Physical location code Identify LED
Failing item
removal and
replacement
procedures
System unit Un
Fans
Fan 1 Un-P1-A1 Yes See Fans.
Fan 2 Un-P1-A2 Yes
Fan 3 Un-P1-A3 Yes
Fan 4 Un-P1-A4 Yes
Fan 5 Un-P1-A5 Yes
Fan 6 Un-P1-A6 Yes
Fan 7 Un-P1-A7 Yes
Power supplies
Power supply 1 Un-E1 Yes See Power
supply.
Power supply 1 - Cord connector Un-E1-T1 Yes
Power supply 2 Un-E2 Yes
Power supply 2 - Cord connector Un-E2-T1 Yes
Backplanes
System backplane Un-P1 Yes See System
backplane.
Time-of-day Un-P1
Time-of-day battery Un-P1-E1 See Time-of-day
battery.
Storage backplane interposer Un-P2 Yes

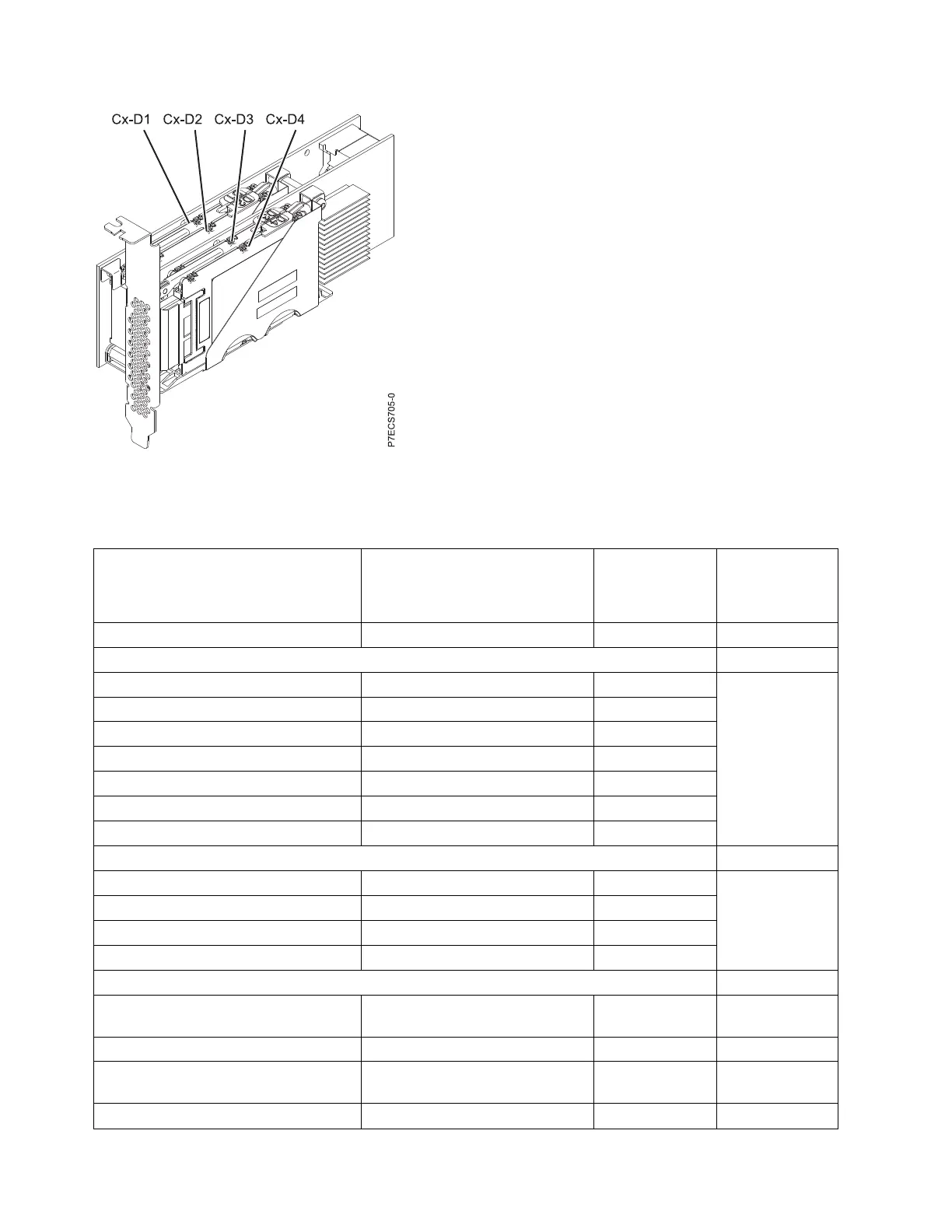

Figure 22. PCIe SAS RAID and SSD adapter locations
32 Finding parts, locations, and addresses
