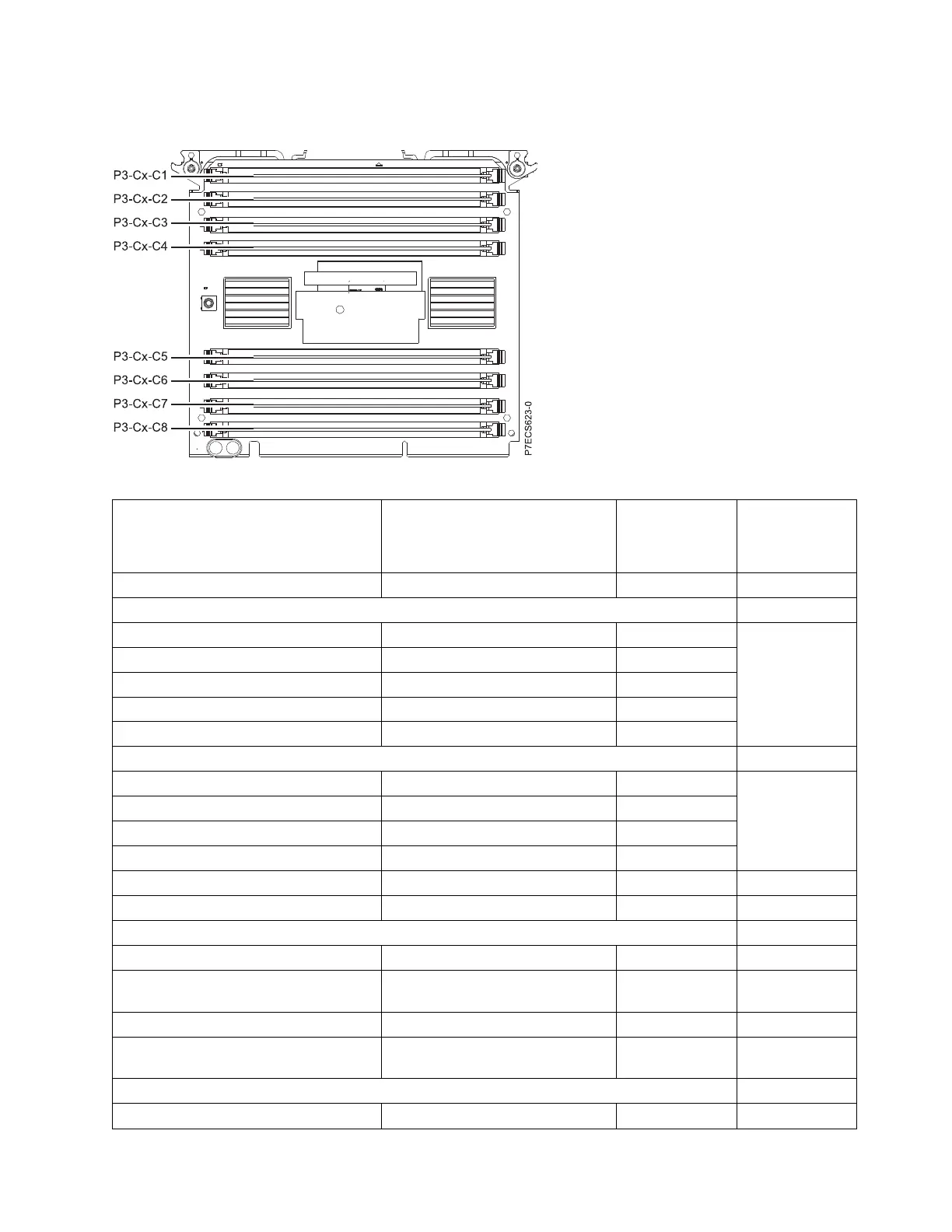

Memory card locations
Table 18. FRU location table
Failing item name Physical location code
Fault and
identify LED
Failing item
removal and
replacement
procedures
System unit Un Yes
Fans
Fan 1 Un-A1 Yes See Fans.
Fan 2 Un-A2 Yes
Fan 3 Un-A3 Yes
Fan 4 Un-A4 Yes
Fan 5 Un-A5 Yes
Power supplies
Power supply 1 Un-E1 Yes See Power
supply.
Power supply 1 - Line cord Un-E1-T1
Power supply 2 Un-E2 Yes
Power supply 2 - Line cord Un-E2-T1
Battery pack (left) Un-P2-C9-C1-E1 Yes
Battery pack (right) Un-P2-C9-C1-E2 Yes
Backplanes
Midplane Un-P1 Yes See Midplane.
I/O backplane Un-P2 Yes See I/O
backplane.
System processor assembly Un-P3 Yes
Small form factor SAS disk drive
backplane with embedded SAS adapters
Un-P2-C9 Yes See Disk drive
backplane.
Ports
Integrated 10 Gb port Un-P2-C8-T1
Finding parts, locations, and addresses 59
