Table 30. Bulk power assembly (BPA) locations and failing components
Failing item name Physical location code
Frame
UEPO panel Un-D1
Connector T1 for BPA -A connection (upper BPA) Un-D1-T1
Connector T2 for BPA-B connection (lower BPA) Un-D1-T2
BPA-A (lower BPA )
BPA Un-P2
Line cord (LC) 1 Un-P2-T1
LC 3 Un-P2-T2
Bulk power regulator (BPR) 3 Un-P2-E1
BPR 1 Un-P2-E2
BPR 11 Un-P2-E3
BPR 9 Un-P2-E4
BPR 7 Un-P2-E5
BPR 5 Un-P2-E6
Bulk power fan (BPF) Un-P2-A1
BPF Un-P2-A2

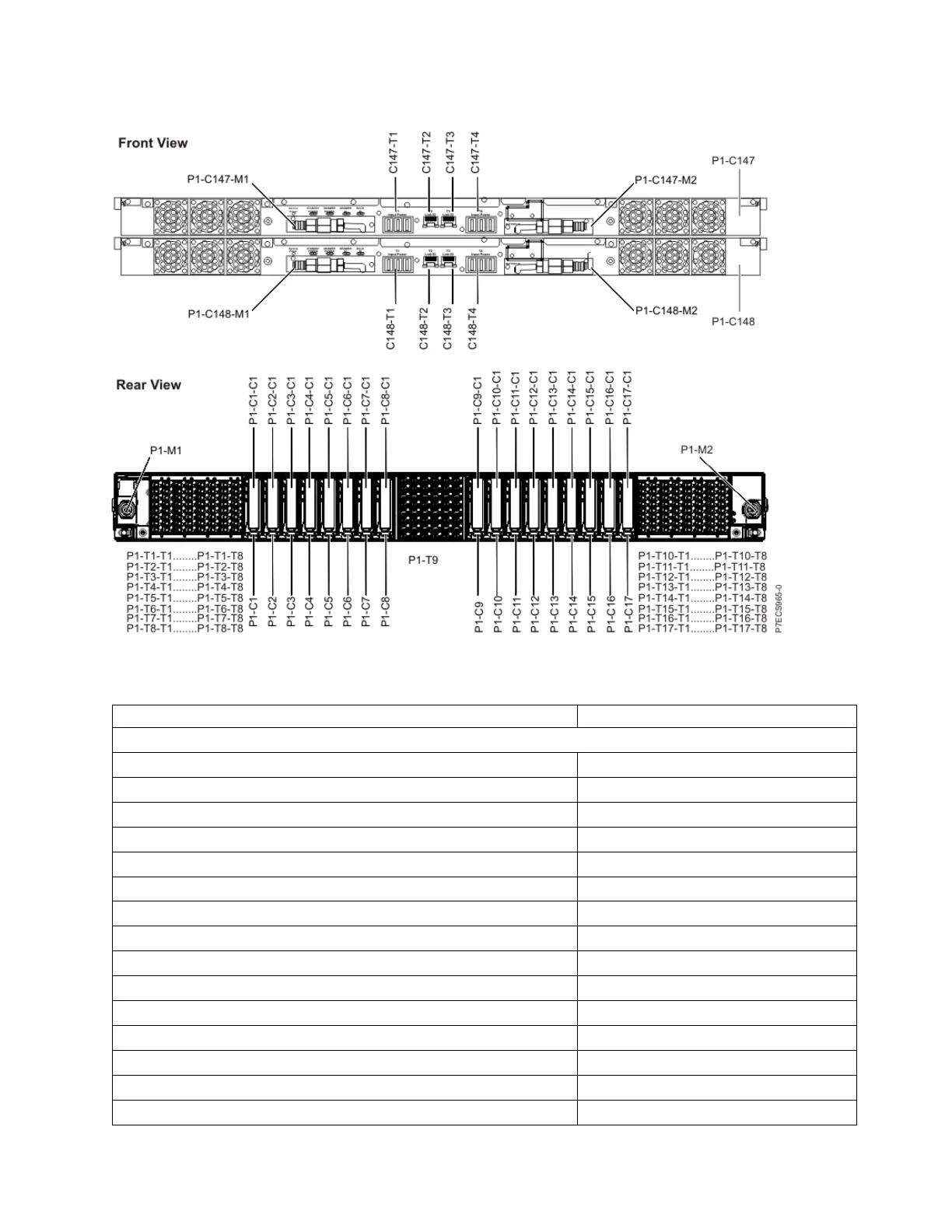

Figure 47. Distributed converter and control assembly (DCCA) and PCIe riser locations
Finding parts, locations, and addresses 101
