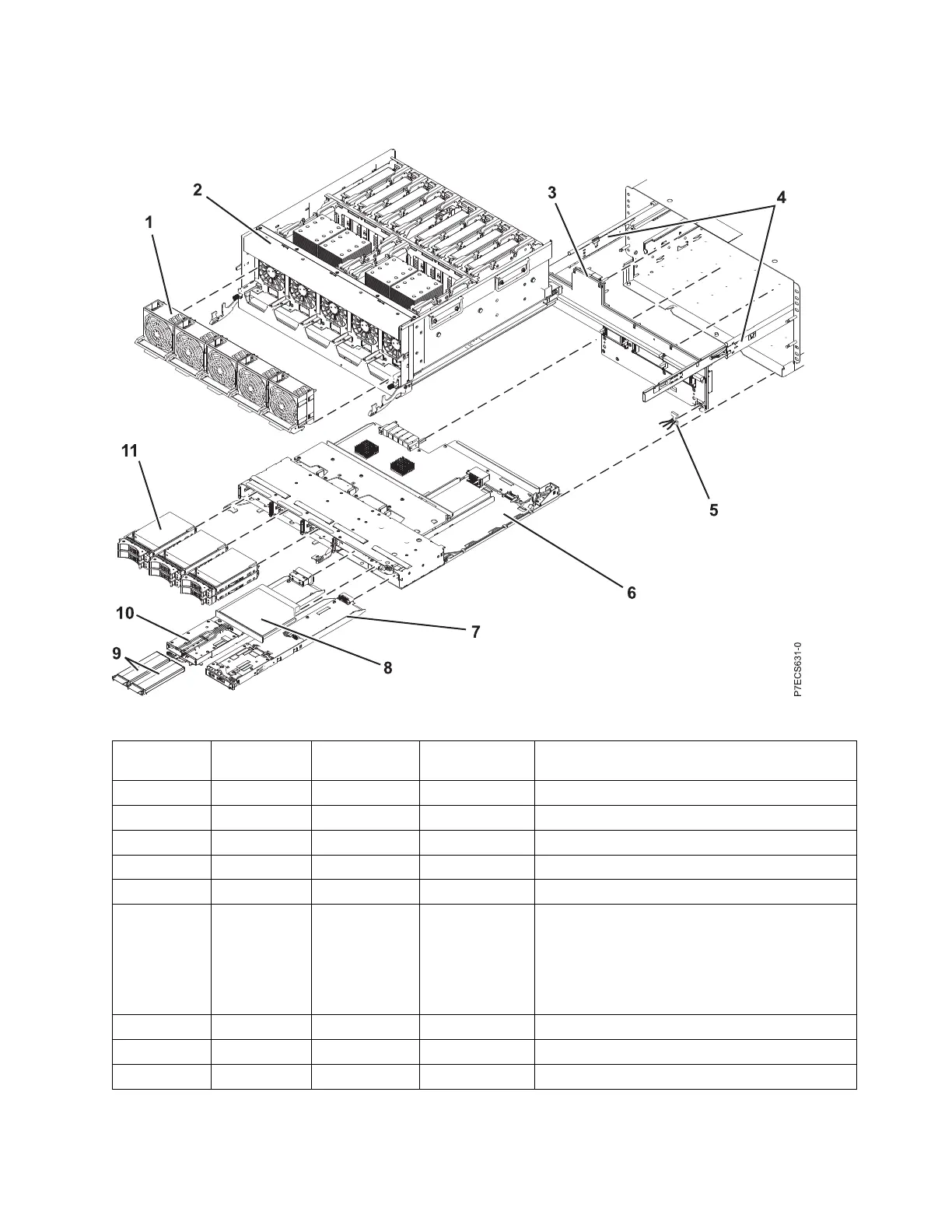

Final assembly (front)
Table 110. Final assembly (front)
Index
number
CCIN Part number Units per
assembly
Description
1 00E7691 5 Fan assembly (single fan)
2 2B61 00E1385 System processor assembly
3 2B62 00E0957 1 Midplane
4 00E8717 1 System processor assembly guide rail kit
5 00E6658 1 Midplane light pipe
6 2BBE 00E7753 1 Small form factor SAS disk drive backplane with
embedded SAS adapters
Note: If feature code 5662 is not installed, the
embedded SAS adapters report CCINs of 57C7. If
feature code 5662 is installed, the embedded SAS
adapters report CCINs of 57CF.
7 2B68 00E1636 1 Control panel
8 1 Media device. See Managing devices.
9 00E5725 2 Cache battery pack
Finding parts, locations, and addresses 229
