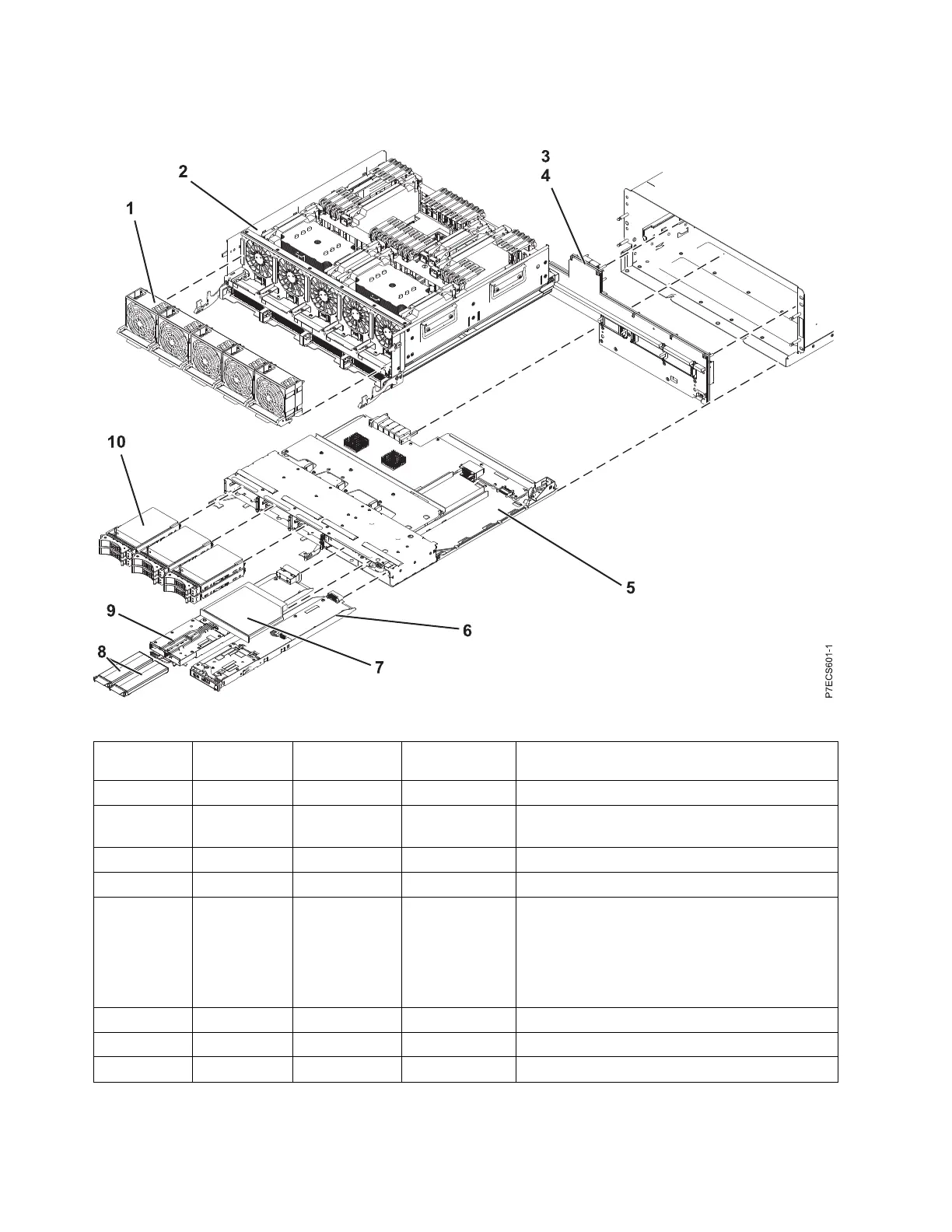

Final assembly (9117-MMC or 9179-MHC with two-processor system unit)
Table 133. Final assembly (front)
Index
number
CCIN Part number Units per
assembly
Description
1 74Y9391 5 Fan assembly (single fan)
2 497B 00E0699 1 System processor assembly FRU kit (9117-MMC
and 9179-MHC with two-processor system unit)
3 2BBD 74Y3890 1 Mid-plane
4 00E6658 1 Mid-plane light pipe
5 2BBE 74Y9514 1 Small form factor SAS disk drive backplane with
embedded SAS adapters
Note: If feature code 5662 is not installed, the
embedded SAS adapters report CCINs of 57C7. If
feature code 5662 is installed, the embedded SAS
adapters report CCINs of 57CF.
6 2B9F 74Y3957 1 Control panel
7 1 DVD drive. See Managing DVD drives.
8 00E5725 2 Cache battery pack
250 Finding parts, locations, and addresses
