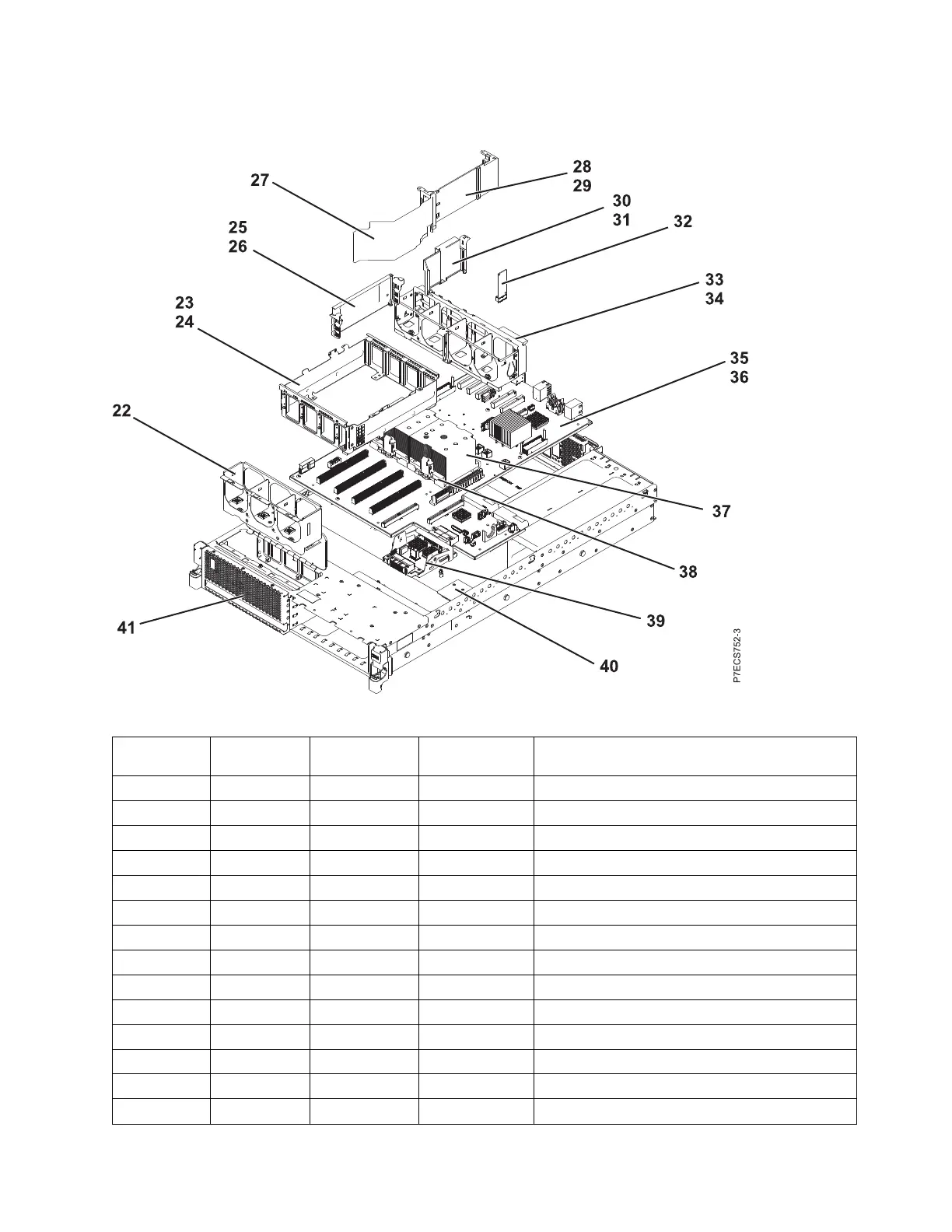

Rack assembly detail, continued
Table 88. Rack assembly part numbers
Index
number
CCIN Part number Units per
assembly
Description
22 74Y6275 1 Fan cage assembly (front)
23 1 Memory card cage assembly
24 6 Attaching screw for memory card cage assembly
25 1 VRM bracket (left)
26 2 Attaching screw for VRM bracket (left)
27 1 Divider
28 1 VRM guide (right)
29 2 Attaching screw, VRM guide (right)
30 1 RAID card guide
31 2 Attaching screw for RAID card guide
32 52C9 74Y2642 1 System VPD card
33 1 Fan cage assembly (rear)
34 1 Attaching screw for fan cage assembly (rear)
35 2BFC 46K7877 1 System backplane (contains 1 processor module)
