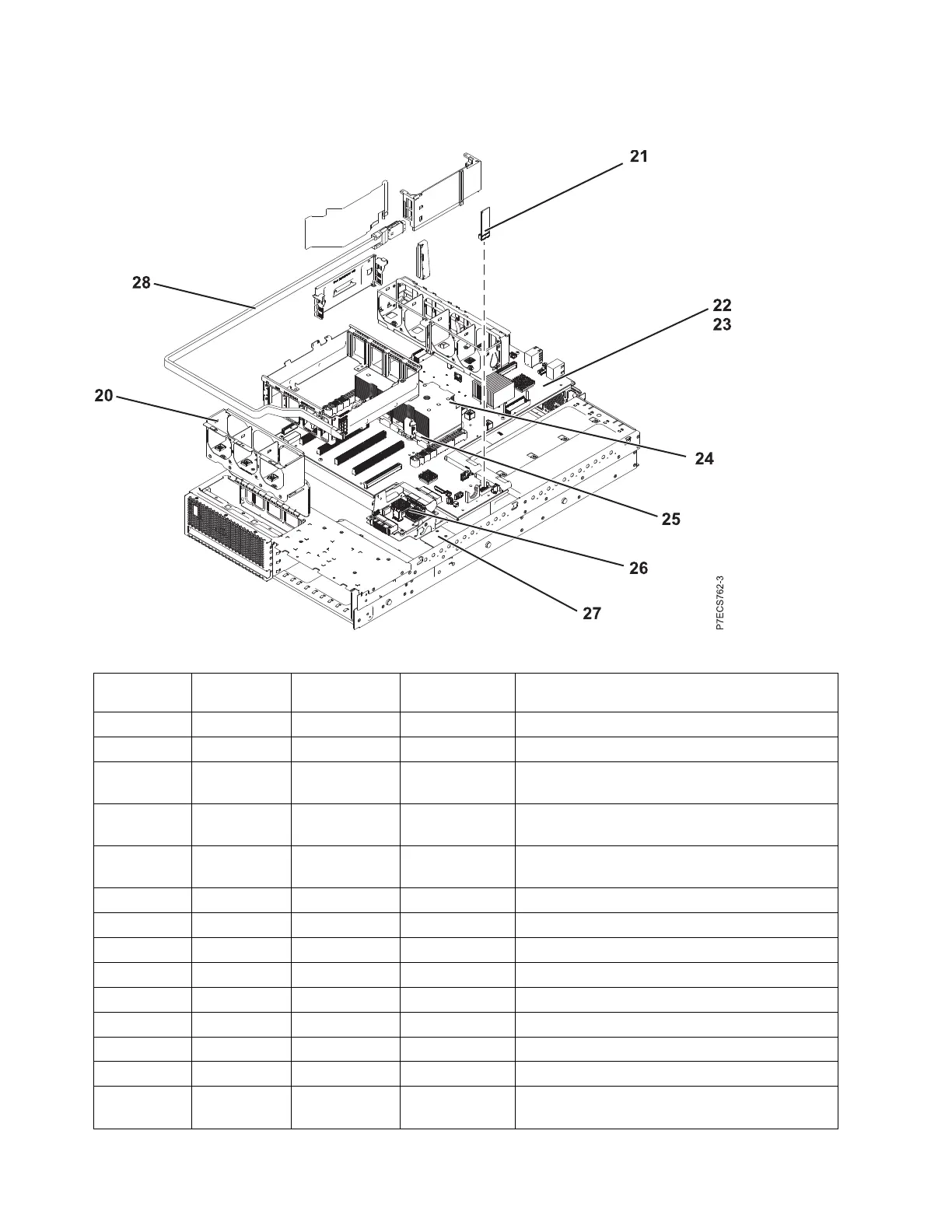

Rack assembly detail, continued
Table 93. Rack assembly part numbers
Index
number
CCIN Part number Units per
assembly
Description
20 74Y3353 1 Fan cage assembly (front)
21 52DC 00E0940 1 System VPD card (8231-E1C or 8231-E2C)
21 521F 00E1674 1 System VPD card (8231-E1D, 8231-E2D, or
8268-E1D)
22 2B4B 00E1765 1 System backplane (contains one processor
module) (8231-E1C)
22 2B4A 00E1768 1 System backplane (contains two processor
modules) (8231-E2C)
22 2B2D 00E1750 1 System backplane (8231-E1D or 8268-E1D)
22 2B2C 00E1751 1 System backplane (8231-E2D)
23 5 Attaching screw for system backplane
24 74Y7421 1 - 2 Heat sink
25 544A 74Y8607 1 - 2 4 core 3.0 GHz processor module
25 543B 74Y8616 1 - 2 4 core 3.72 GHz processor module
25 543A 74Y8610 1 - 2 6 core 3.72 GHz processor module
25 543C 74Y8613 1 - 2 8 core 3.55 GHz processor module
25 54AD 00E7468 1 - 2 8- core 4.22 GHz processor module (only
8231-E1D, 8231-E2D, or 8268-E1D)
212 Finding parts, locations, and addresses
