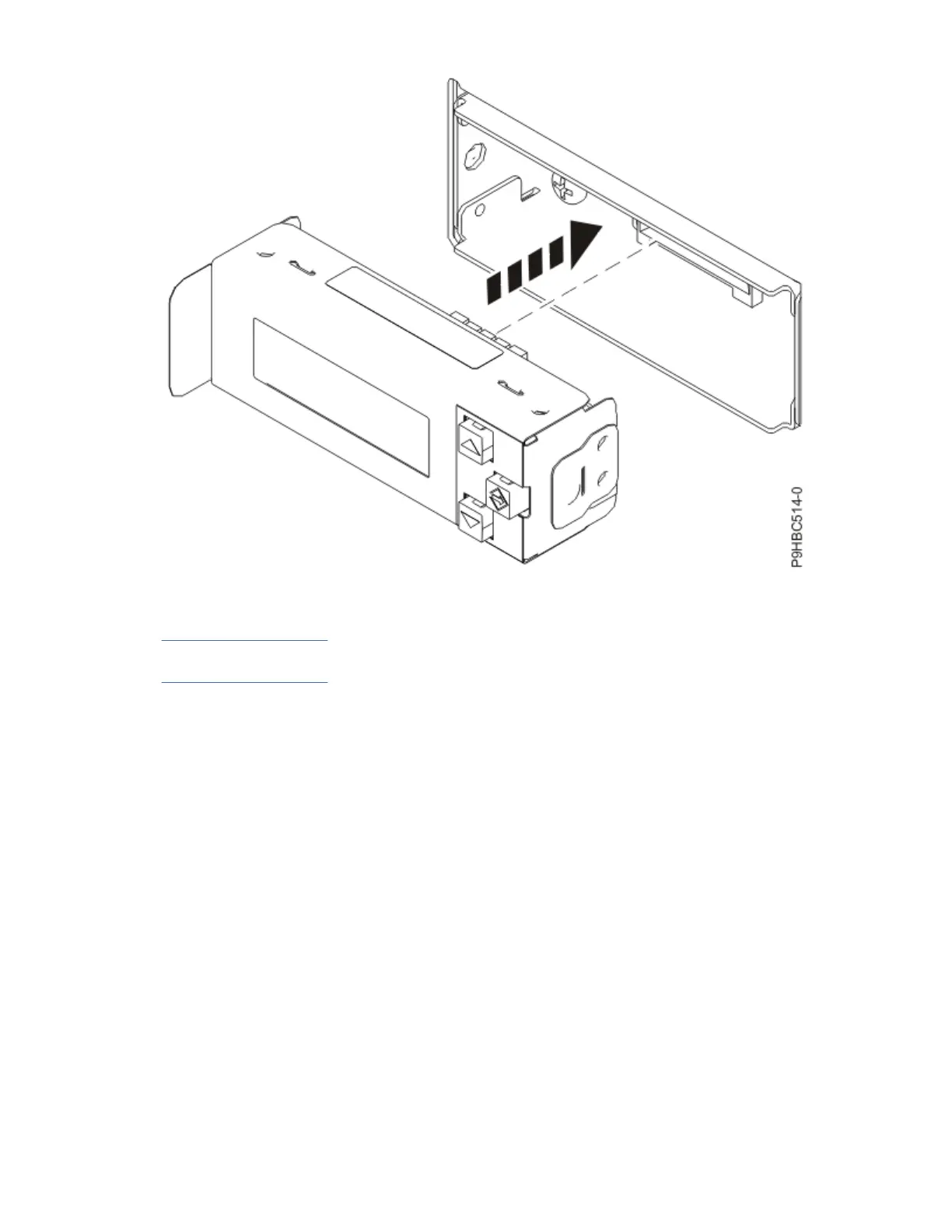

Figure 127. Inserting the control panel display
10. For a rack-mounted system, replace the air baffle (A) straight down into the chassis as shown in
Figure 128 on page 133.
For a stand-alone system, replace the air baffle (A) straight into the side of the chassis as shown in
Figure 129 on page 134.
Ensure that the front flap tucks under the front chassis.
132
Power Systems: Power Systems: Control panel
