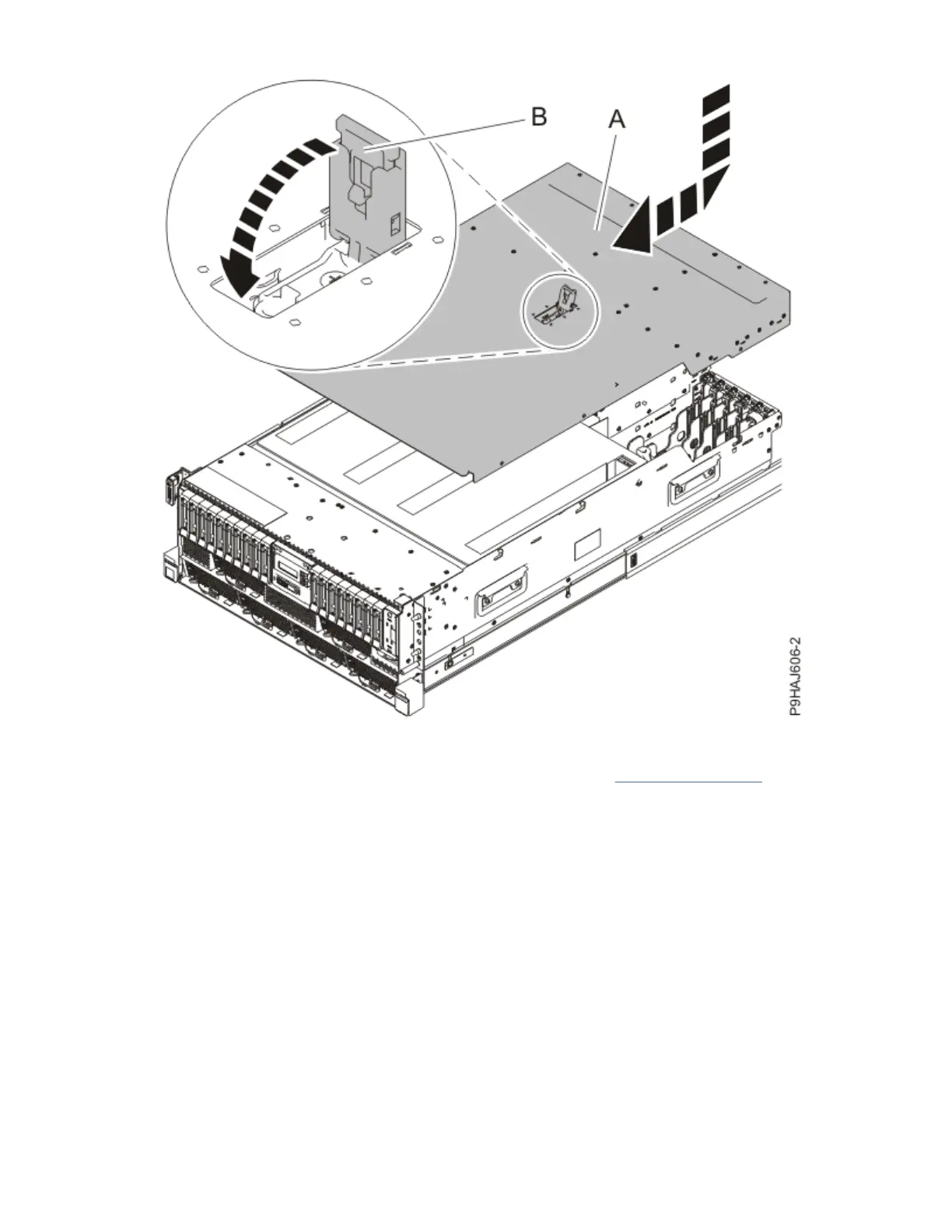

Figure 16. Installing the service access cover
For a stand-alone system, complete the following steps. Refer to Figure 17 on page 20.
a. Slide the cover (B) on to the system unit as shown.
b. Close the latch release (A) by pushing it in the direction shown.
Service processor card for the 9009-41A, 9009-41G, 9009-42A, 9009-42G, 9223-42H, or 9223-42S
19
