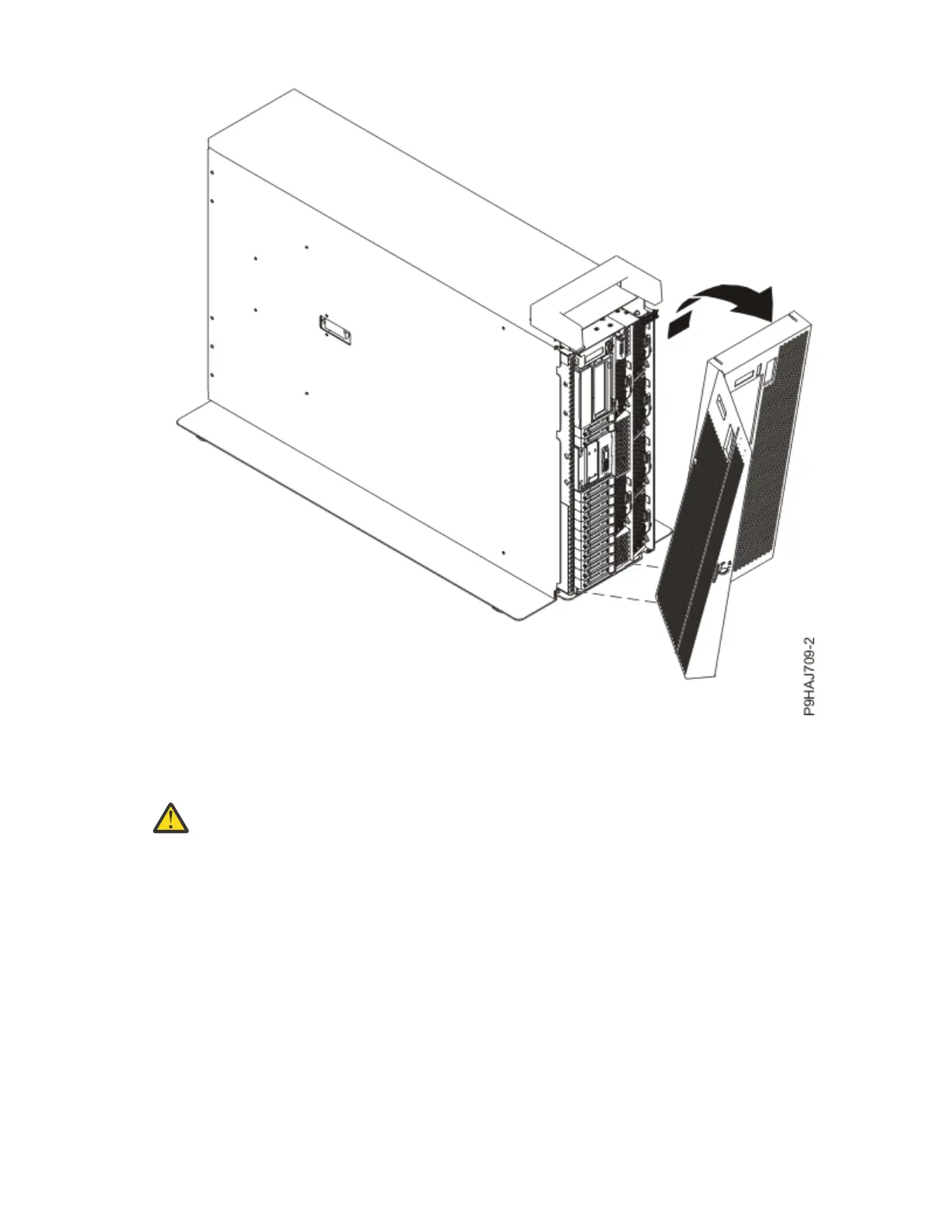

Figure 39. Removing the front cover
5. Attach the electrostatic discharge (ESD) wrist strap. Your system has ESD jacks on the front and on the
rear of the system as shown in the following gure. Plug the ESD wrist strap into the ESD jack.
Attention:
• Attach an electrostatic discharge (ESD) wrist strap to the front ESD jack, to the rear ESD jack,
or to an unpainted metal surface of your hardware to prevent the electrostatic discharge from
damaging your hardware.
• When you use an ESD wrist strap, follow all electrical safety procedures. An ESD wrist strap is
used for static control. It does not increase or decrease your risk of receiving electric shock
when using or working on electrical equipment.
• If you do not have an ESD wrist strap, just prior to removing the product from ESD packaging
and installing or replacing hardware, touch an unpainted metal surface of the system for a
minimum of 5 seconds.
Control panel and control panel display for the 9009-41A, 9009-42A, or 9223-42H 41
