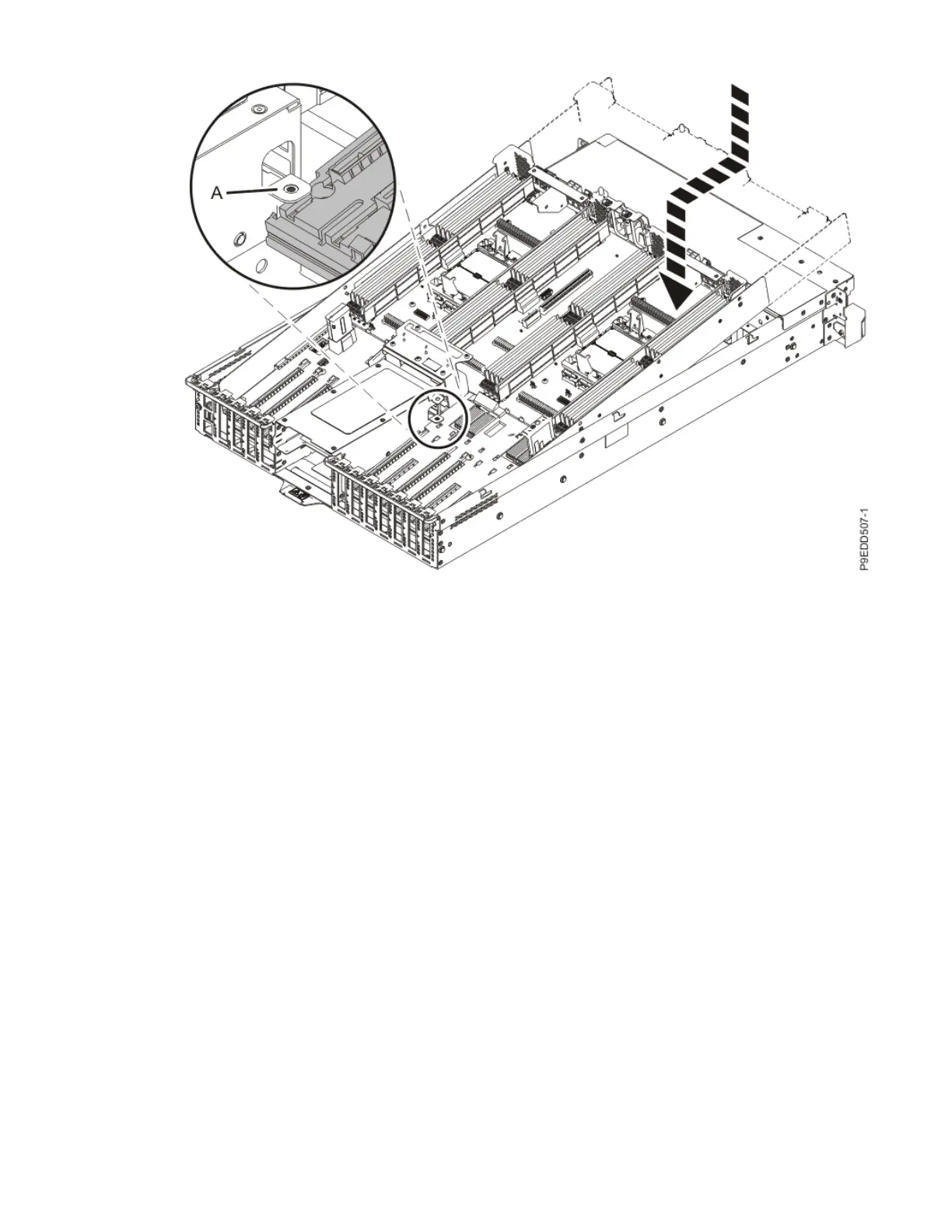

Figure 68. Tilting and lowering the system backplane into the chassis
c) Continue lowering the backplane into the chassis until the pins engage.
d) Place your ngers in positions (A) and (B) and slide the system backplane slightly toward the rear
of the system as shown in the following gure
Note: Slide the system backplane carefully. There is just enough space for the power connectors
to clear the flange on the power supply cage (C).
Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,
or 9223-22S 69
