SAS adapter to expansion drawer combinations
Figure 65 on page 134 illustrates connecting a SAS adapter to both a disk expansion drawer and a media
expansion drawer on separate adapter ports. It is also possible to cascade a second disk expansion
drawer (see Figure 62 on page 131).

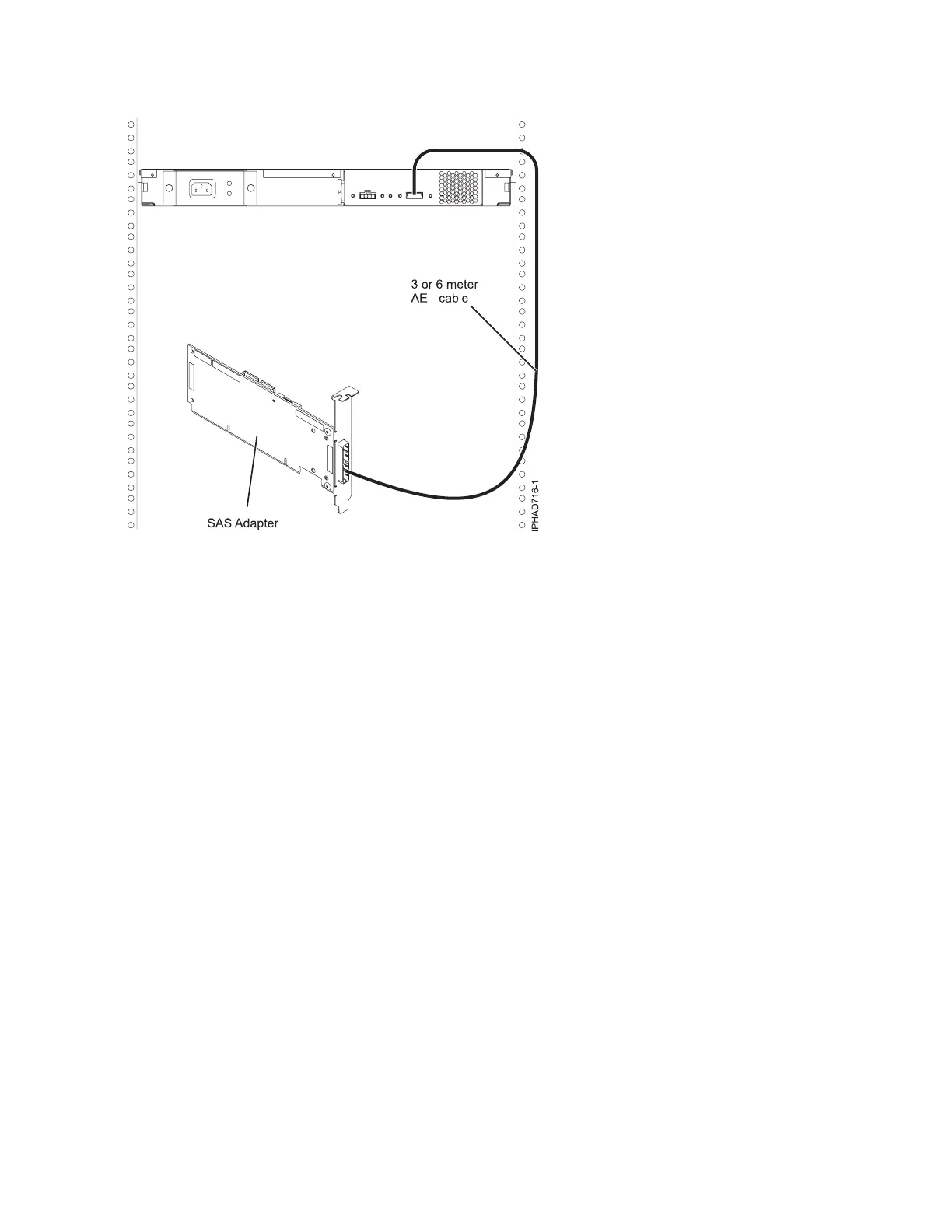

Figure 64. SAS adapter to a media expansion drawer
Site and hardware planning 133
