Notes:
v The X cable must be routed along the right side of the rack frame.
v The X cable must be attached to the same numbered port on all adapters.

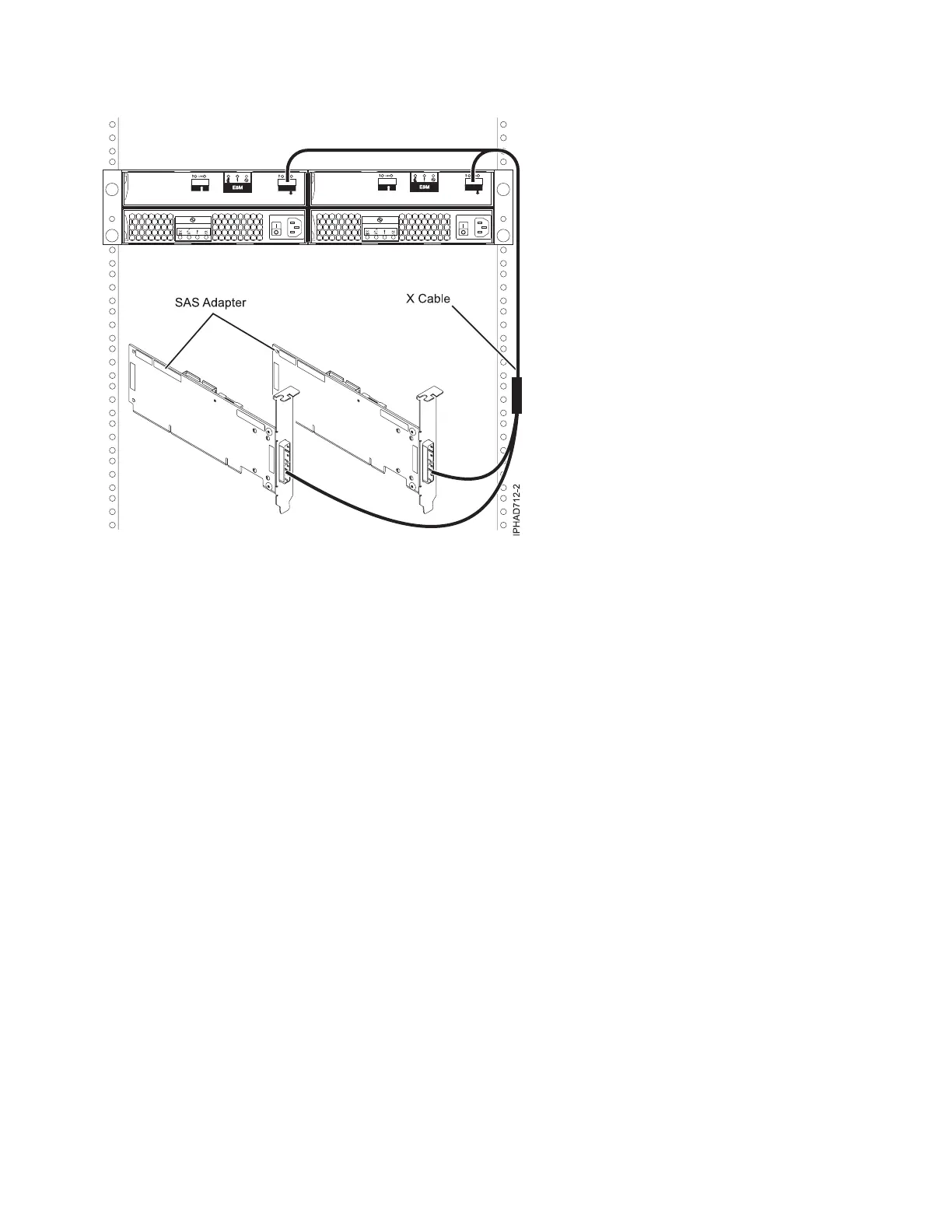

Figure 69. Two SAS RAID adapters to a disk expansion drawer in a multi-initiator HA RAID configuration
