Notes:
v No cascading allowed for the 5887 storage drawer.
v The 5887 storage drawer is connected to same numbered port on each adapter.
v HD AA cable is required.

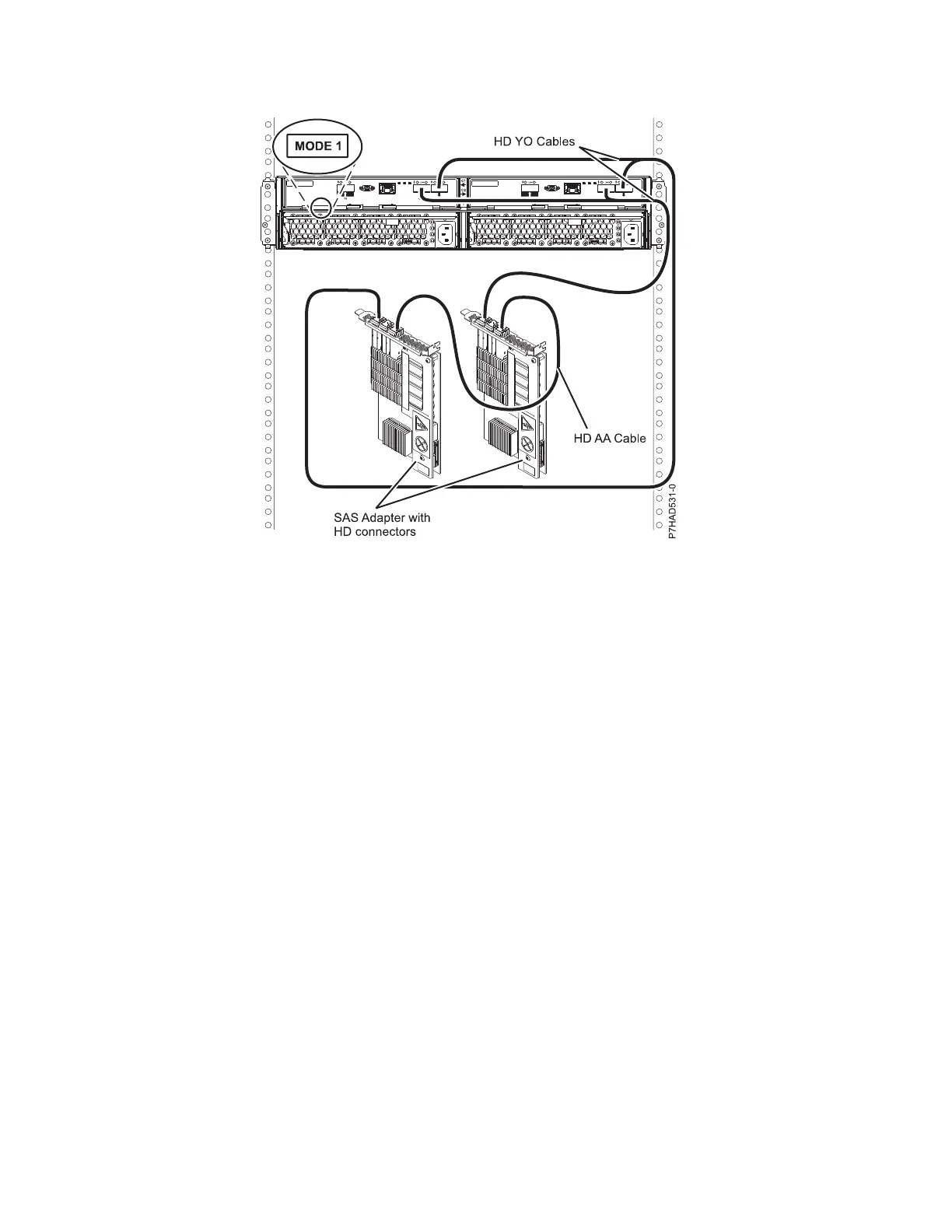

Figure 73. Two RAID SAS adapters with HD connectors to a disk expansion drawer in a multi-initiator HA mode
142 Site and hardware planning

IBM Power Systems Series Specifications

General

Virtualization	PowerVM
Architecture	POWER
Operating System	AIX, IBM i, Linux
Use Case	Enterprise workloads, cloud
Form Factor	Rack-mount
I/O	PCIe
Power Supply	Redundant power supplies available
Management	HMC (Hardware Management Console)
Processor	IBM POWER processors (POWER9, POWER10, etc.)
Storage	Supports various storage options including SSDs and HDDs
