IBM Power Systems Series Site And Hardware Planning

Note:
v No cascading allowed for the 5887 storage drawer.
v The 5887 storage drawers are connected to same numbered port on each adapter.

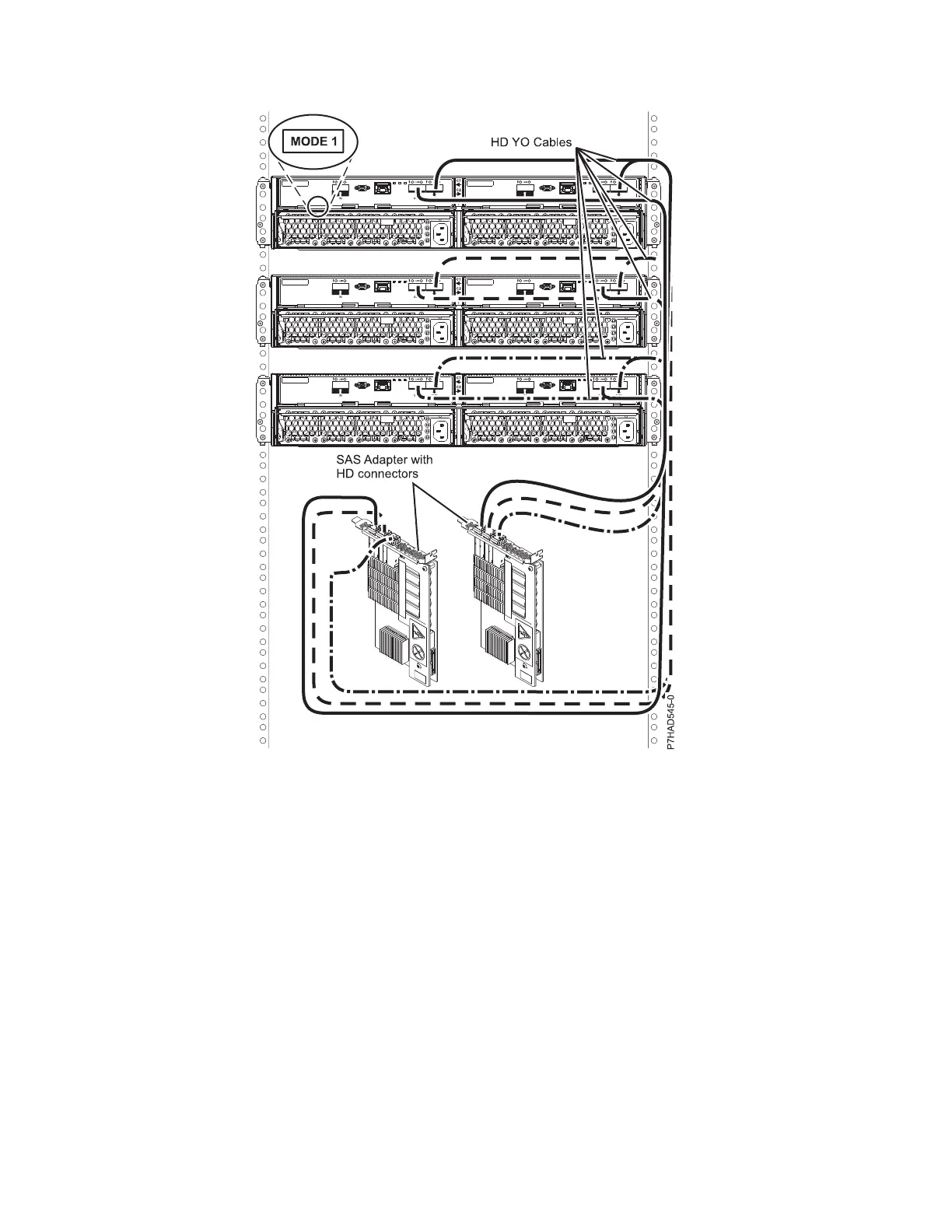

Figure 75. Two RAID SAS adapters with HD connectors to three disk expansion drawers in a multi-initiator HA mode
144 Site and hardware planning

IBM Power Systems Series Specifications

General

Virtualization	PowerVM
Architecture	POWER
Operating System	AIX, IBM i, Linux
Use Case	Enterprise workloads, cloud
Form Factor	Rack-mount
I/O	PCIe
Power Supply	Redundant power supplies available
Management	HMC (Hardware Management Console)
Processor	IBM POWER processors (POWER9, POWER10, etc.)
Storage	Supports various storage options including SSDs and HDDs
