IBM Power Systems Series Site And Hardware Planning

7. Four single FC 5901 or FC 5278 adapters to one 5887 enclosure via a mode 4 connection.
v 5887 enclosure with four sets of six hard disk drives (HDDs).
v Connection using dual SAS X cables to connect to the 5887 enclosure.
v Supported only on AIX and Linux systems.

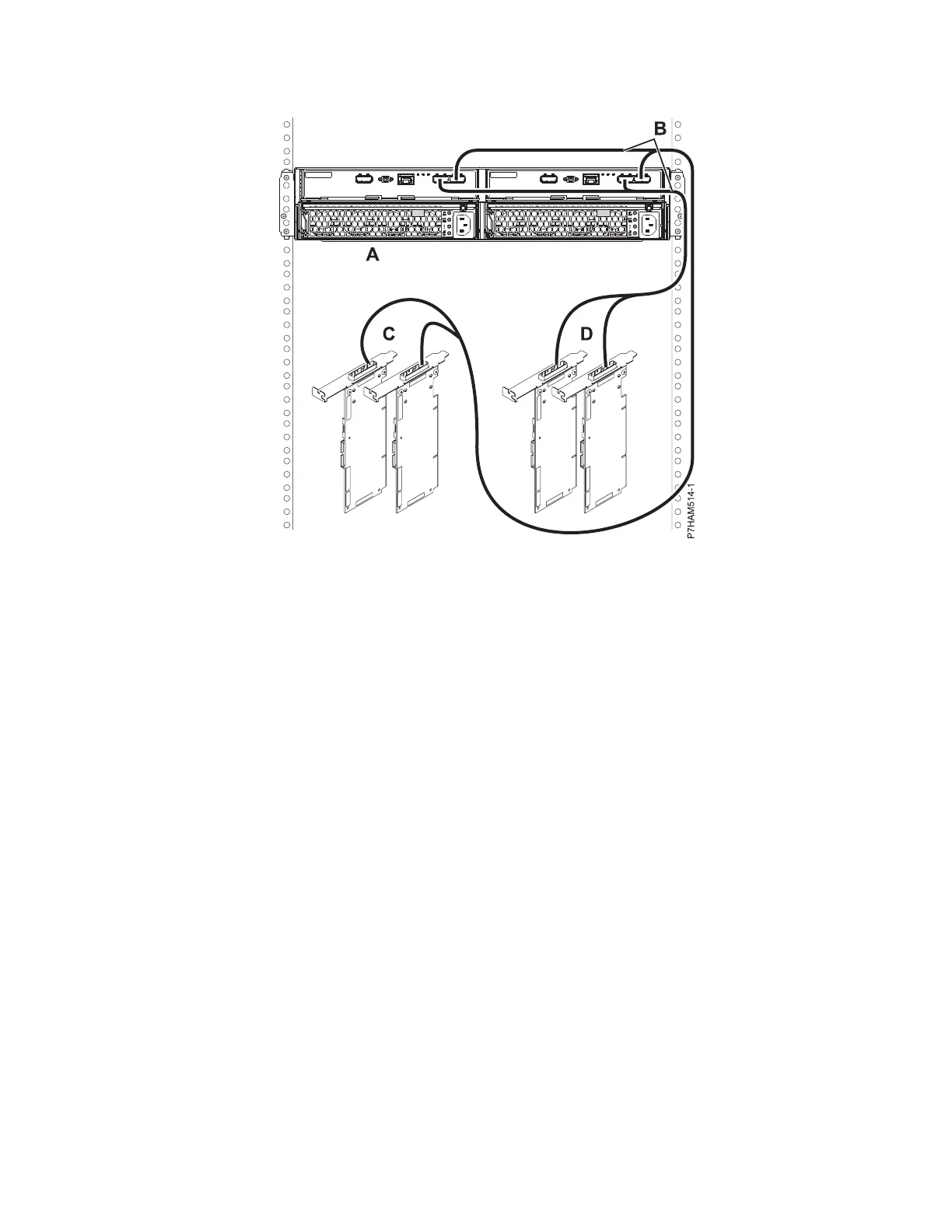

Figure 81. Mode 2 connection of a 5887 enclosure by using X cables to two pairs of SAS adapters
Site and hardware planning 151

IBM Power Systems Series Specifications

General

Virtualization	PowerVM
Architecture	POWER
Operating System	AIX, IBM i, Linux
Use Case	Enterprise workloads, cloud
Form Factor	Rack-mount
I/O	PCIe
Power Supply	Redundant power supplies available
Management	HMC (Hardware Management Console)
Processor	IBM POWER processors (POWER9, POWER10, etc.)
Storage	Supports various storage options including SSDs and HDDs
