2. Dual FC 5805 or FC 5903 adapters to two 5887 enclosures via a mode 1 connection.
v 5887 enclosures with HDDs only.
v Connection using dual SAS YO cables to connect to the 5887 enclosures.
3. Two pairs of FC 5805 or FC 5903 adapters to one 5887 enclosure via a mode 2 connection.
v 5887 enclosure with 1 - 12 HDDs or 1 - 8 SSDs.
v Connection using dual SAS X cables to connect to the 5887 enclosure.
v Supported only on AIX and Linux systems. No support for IBM i.

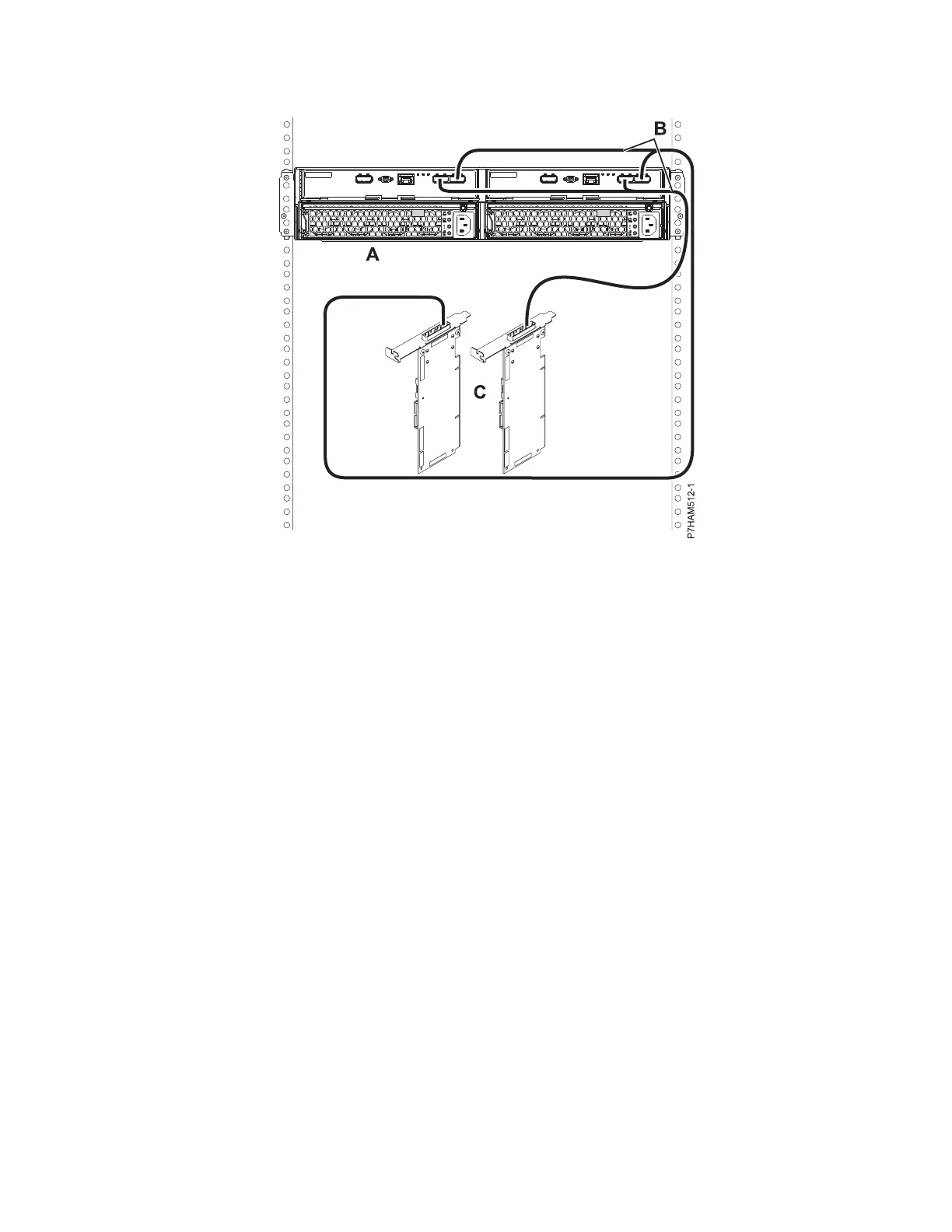

Figure 83. Mode 1 connection of a 5887 enclosure by using YO cables to dual SAS adapters
Site and hardware planning 153

IBM Power Systems Series Specifications

General

Virtualization	PowerVM
Architecture	POWER
Operating System	AIX, IBM i, Linux
Use Case	Enterprise workloads, cloud
Form Factor	Rack-mount
I/O	PCIe
Power Supply	Redundant power supplies available
Management	HMC (Hardware Management Console)
Processor	IBM POWER processors (POWER9, POWER10, etc.)
Storage	Supports various storage options including SSDs and HDDs
