9. Two pairs of PCIe3 SAS adapters with HD narrow connectors to one 5887 enclosure via a mode 2
connection.
v No cascading allowed.
v Two HD AA narrow cables are required on each pair of adapters.

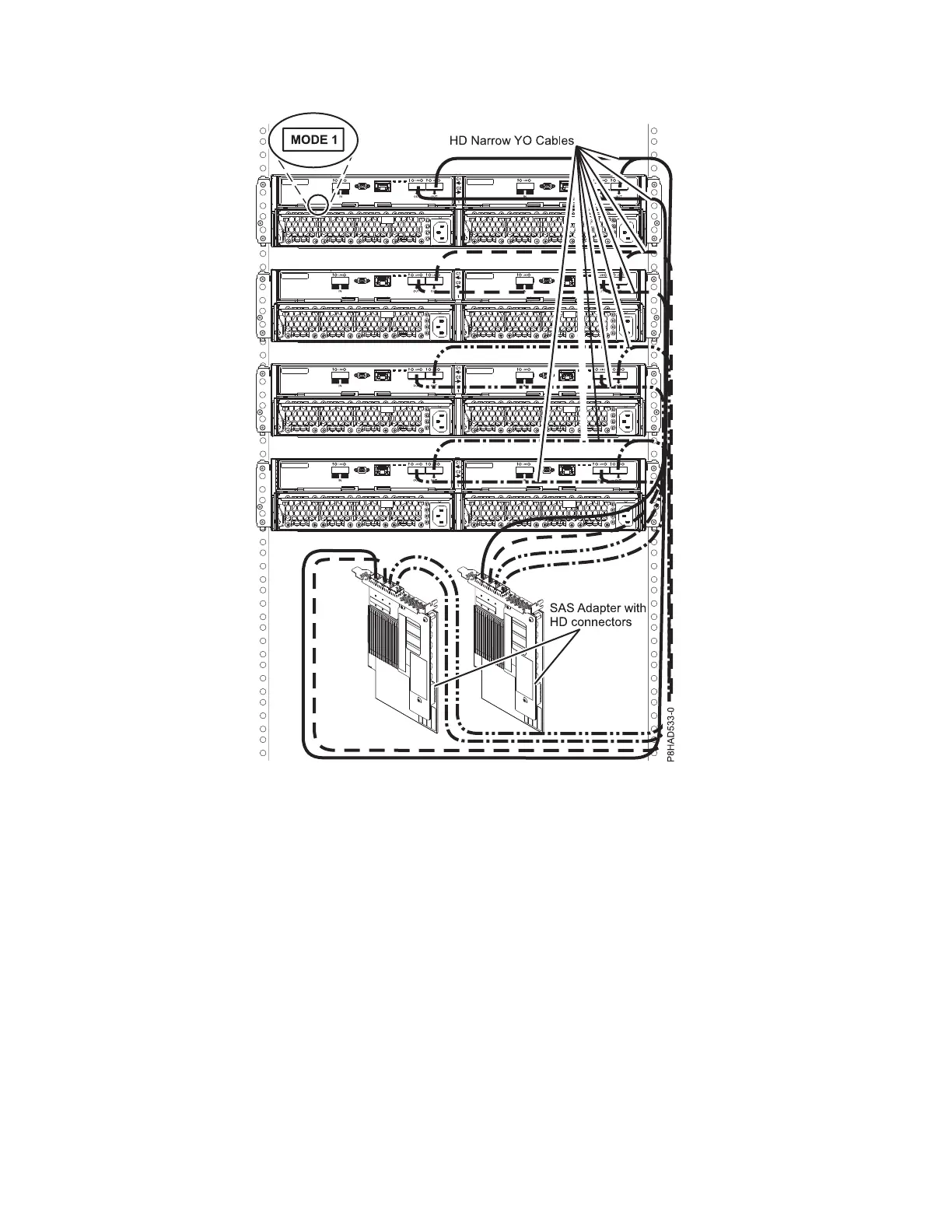

Figure 92. Mode 1 connection of four 5887 enclosures to two PCIe3 SAS adapters with HD narrow connectors.
