6. Lay the monitor facedown on a cushioned surface and remove the six screws that secure the hinges
to the flat panel monitor.

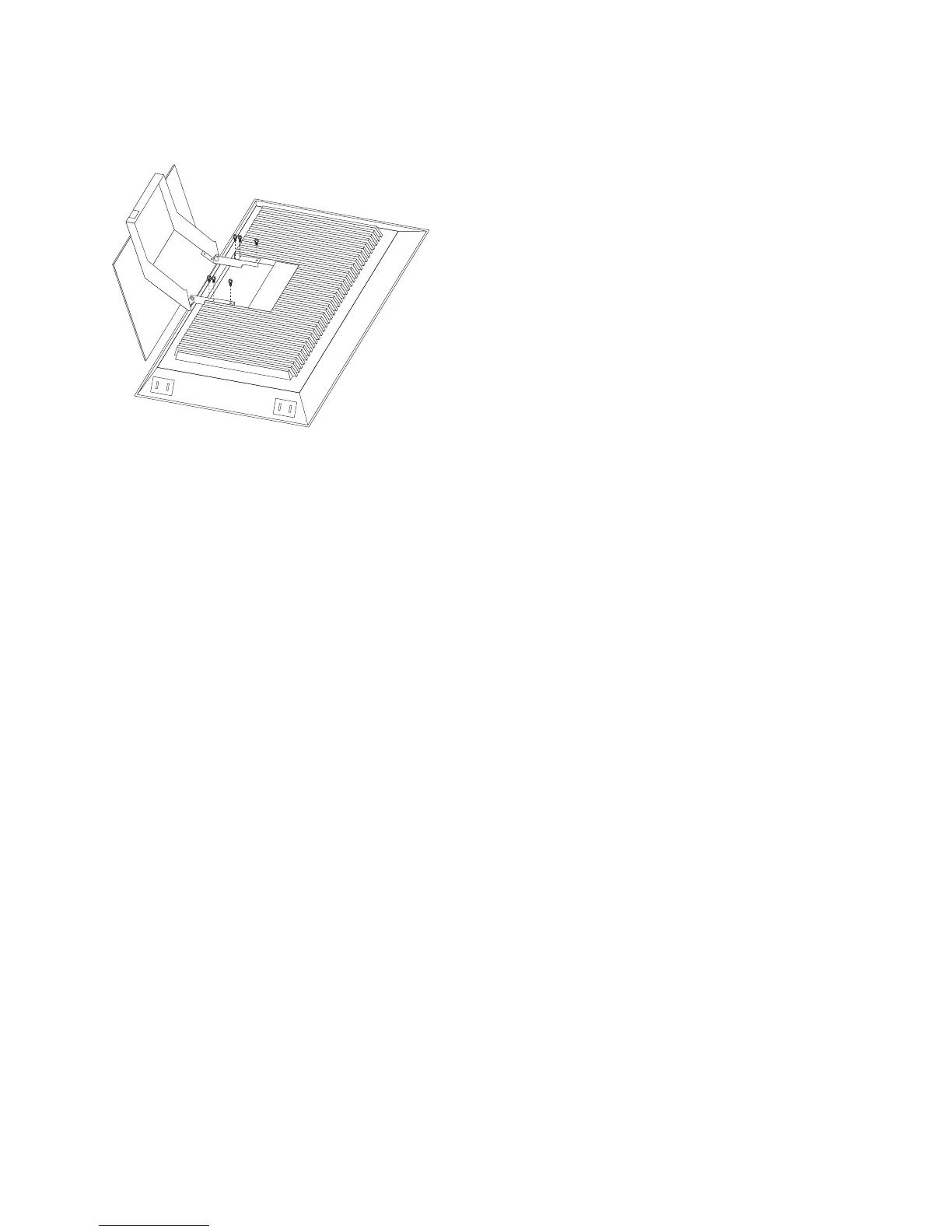

Figure 3. Removing the existing monitor stand from the monitor
7. Lift off the hinge and monitor stand assembly. Store this assembly in a safe place for possible future
use.
Removing the existing flat panel monitor stand 3
