Table 5. Two Node Configuration SMP Cabling
Cable Number Cable Type From: (U-Loc) To: (U-Loc)
1 1.5 m (4.9 ft) SMP Cable U2: P1-T3 U4: P1-T1
2 1.25 m (4.1 ft) SMP Cable U2: P1-T1 U4: P1-T3
3 1.25 m (4.9 ft) SMP Cable U2: P1-T2 U4: P1-T2
4 1.25 m (4.9 ft) SMP Cable U2: P1-T5 U4: P1-T5
5 1.25 m (4.9 ft) SMP Cable U2: P1-T6 U4: P1-T4
6 1.5 m (4.9 ft) SMP Cable U2: P1-T4 U4: P1-T6
Note: U2 is System Node 1 and U4 is System Node 2.

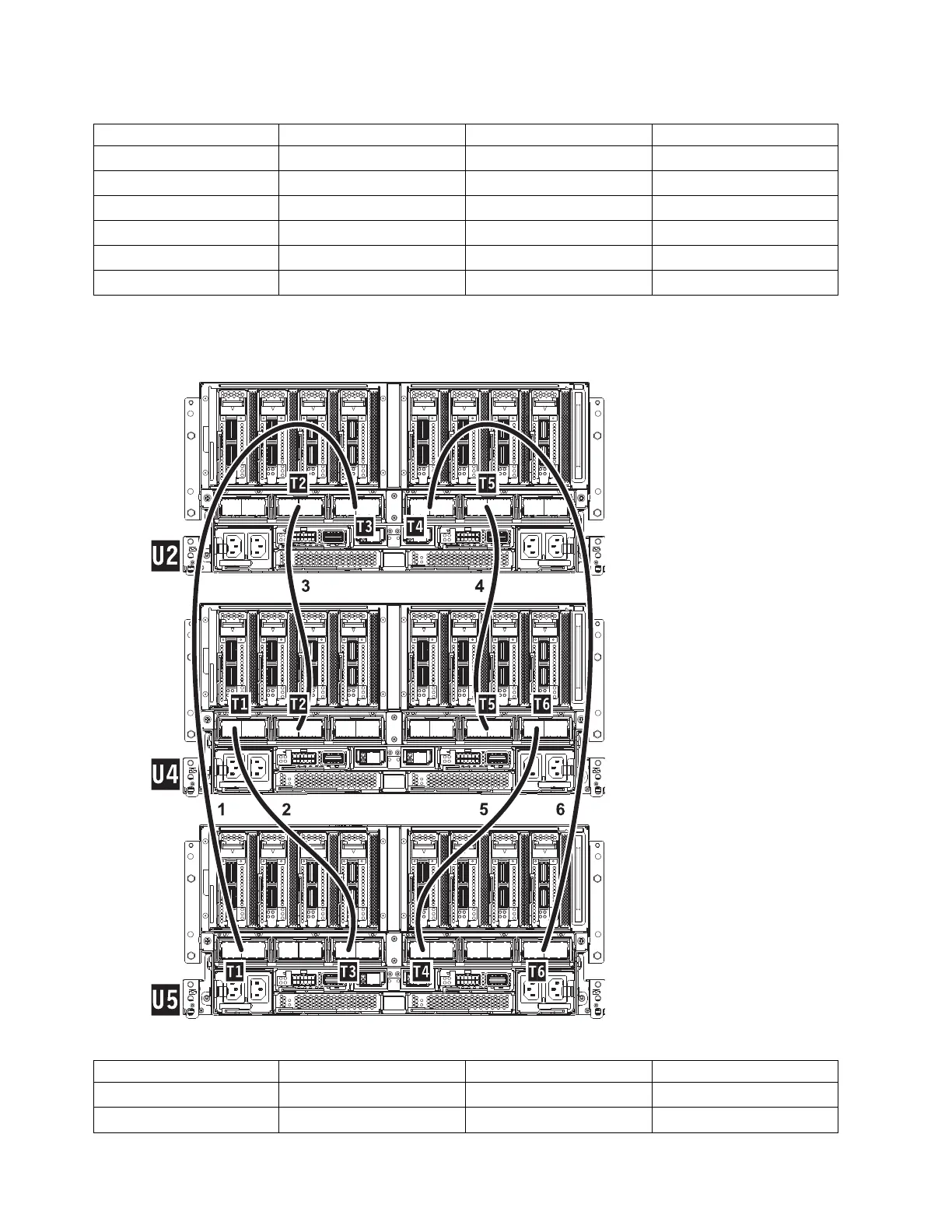

c. If you have a three node system configuration, use the diagram and the Three Node Configuration
SMP cabling table below to determine point-to-point cabling for SMP cables.
Table 6. Three Node Configuration SMP Cabling
Cable Number Cable Type From: (U-Loc) To: (U-Loc)
1 1.5 m (4.9 ft) SMP Cable U2: P1-T3 U5: P1-T1
2 1.25 m (4.1 ft) SMP Cable U4: P1-T1 U5: P1-T3
38 Power Systems: SCM
