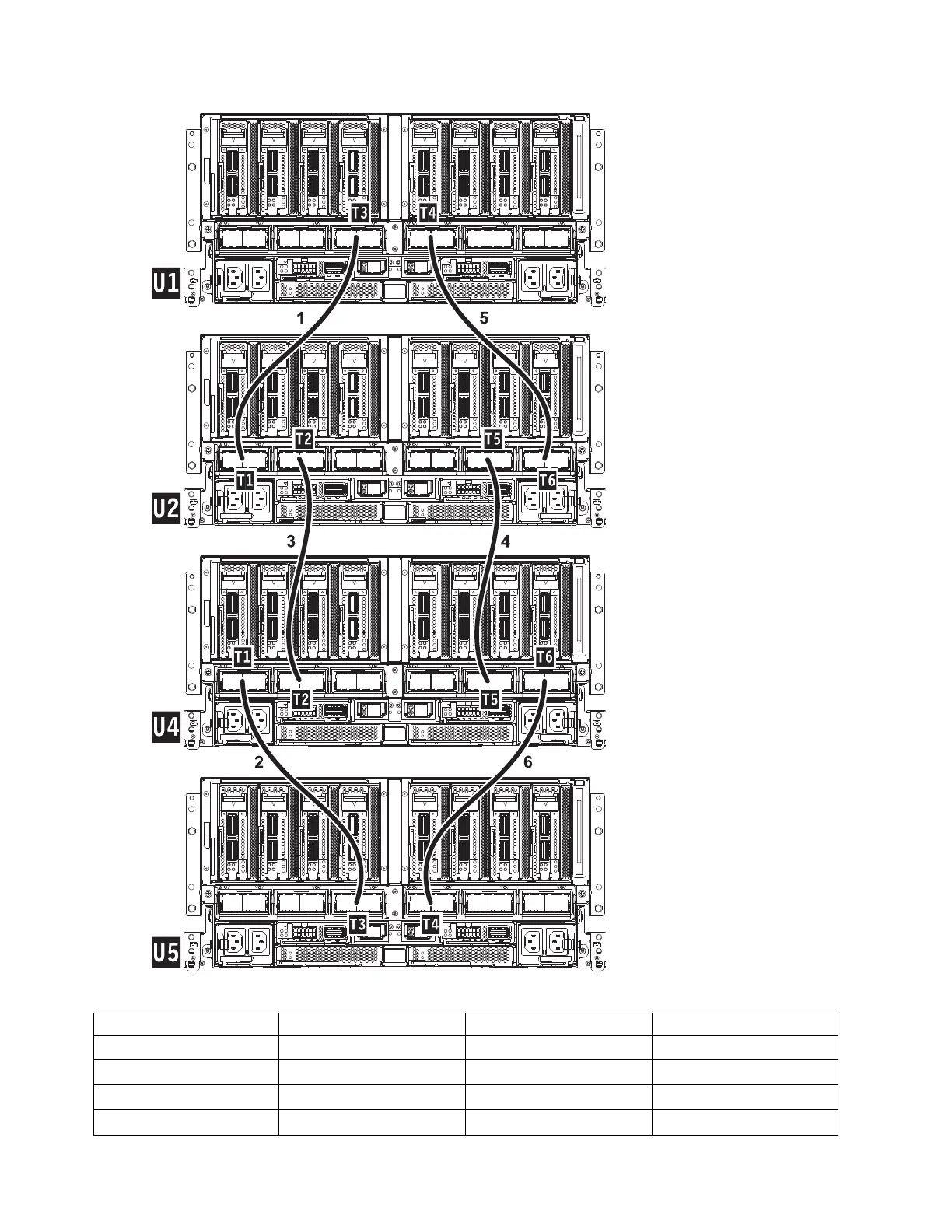

Table 7. Four Node Configuration SMP Short Cabling (short cables)
Cable Number Cable Type From: (U-Loc) To: (U-Loc)
1 1.25 m (4.1 ft) SMP Cable U1: P1-T3 U2: P1-T1
2 1.25 m (4.1 ft) SMP Cable U4: P1-T1 U5: P1-T3
3 1.25 m (4.1 ft) SMP Cable U2: P1-T2 U4: P1-T2
4 1.25 m (4.1 ft) SMP Cable U2: P1-T5 U4: P1-T5
40 Power Systems: SCM
