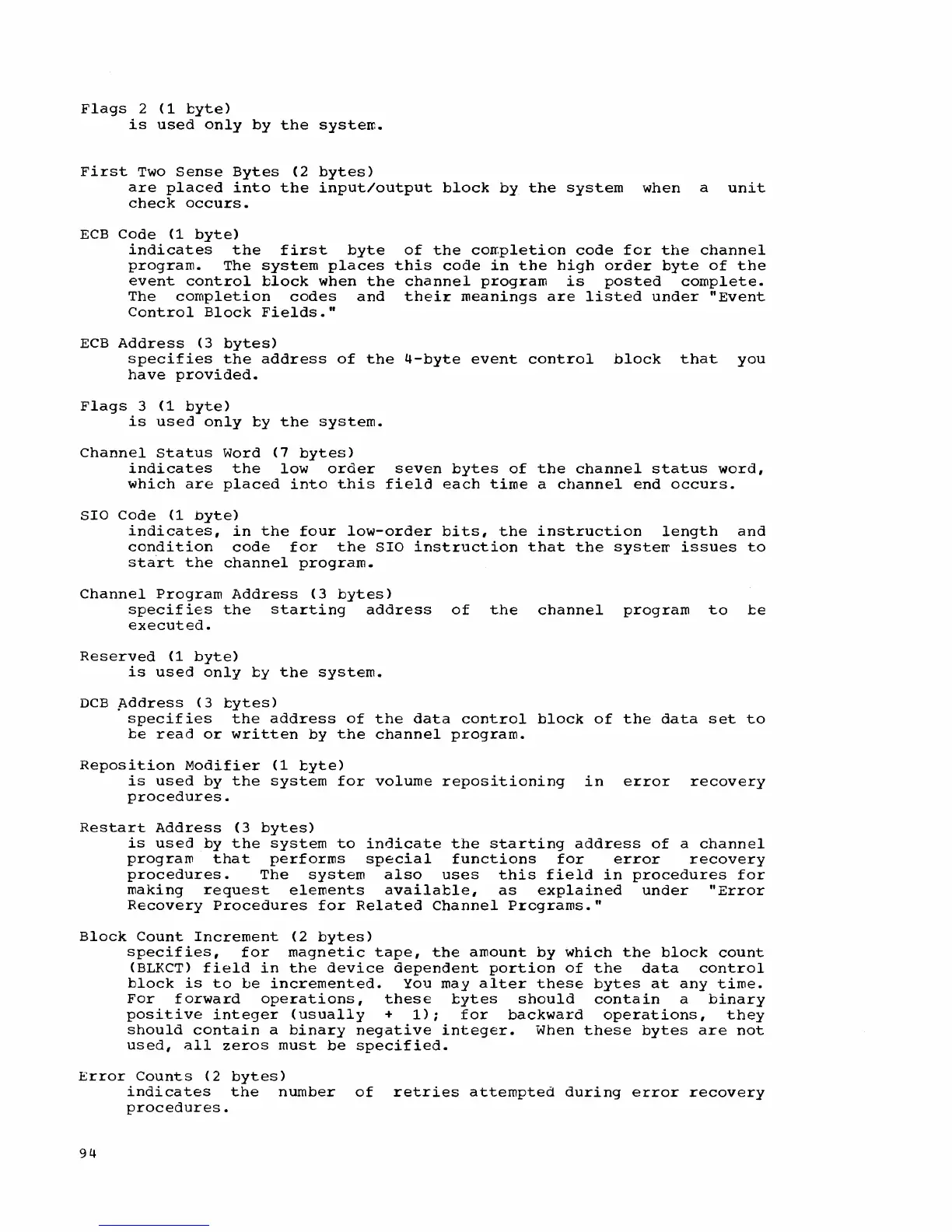

Flags
2
(1
byte)
is
used
only
by
the
system.
First
Two
Sense
Bytes
(2
bytes)
are
placed
into
the
input/output
block
by
the
system
when
a
unit
check
occurs.
ECB
Code
(1
byte)
indicates
the
first
byte
of
the
conpletion
code
for
the
channel
program.
The
system
places
this
code
in
the
high
order
byte
of
the
event
control
block
when
the
channel
program
is
posted
complete.
The
completion
codes
and
their
meanings
are
listed
under
"Event
Control
Block
Fields."
ECB
Address
(3
bytes)
specifies
the
address
of
the
4-byte
event
control
block
that
you
have
provided.
Flags
3
(1
byte)
is
used
only
by
the
system.
Channel
status
Word
(7
bytes)
indicates
the
low
order
seven
bytes
of
the
channel
status
word,
which
are
placed
into
this
field
each
time
a
channel
end
occurs.
SIO
Code
(1
byte)
indicates,
in
the
four
low-order
bits,
the
instruction
length
and
condition
code
for
the
SIO
instruction
that
the
systerr
issues
to
start
the
channel
program.
Channel
Program
Address
(3
bytes)
specifies
the
starting
address
of
the
channel
program
to
be
executed.
Reserved
(1
byte)
is
used
only
by
the
system.
DCB
~ddress
(3
bytes)
specifies
the
address
of
the
data
control
block
of
the
data
set
to
be
read
or
written
by
the
channel
program.
Reposition
Modifier
(1
byte)
is
used
by
the
system
for
volume
repositioning
in
error
recovery
procedures.
Restart
Address
(3
bytes)
is
used
by
the
system
to
indicate
the
starting
address
of
a
channel
prograro
that
performs
special
functions
for
error
recovery
procedures.
The
system
also
uses
this
field
in
procedures
for
making
request
elements
available,
as
explained
under
"Error
Recovery
Procedures
for
Related
Channel
Prcgrams."
Block
Count
Increment
(2
bytes)
specifies,
for
magnetic
tape,
the
amount
by
which
the
block
count
(BLKCT)
field
in
the
device
dependent
portion
of
the
data
control
block
is
to
be
incremented.
You may
alter
these
bytes
at
any
time.
For
forward
operations,
these
bytes
should
contain
a
binary
positive
integer
(usually
+
1);
for
backward
operations,
they
should
contain
a
binary
negative
integer.
When
these
bytes
are
not
used,
all
zeros
must
be
specified.
Error
Counts
(2
bytes)
94
indicates
the
number
of
retries
attempted
during
error
recovery
procedures.
