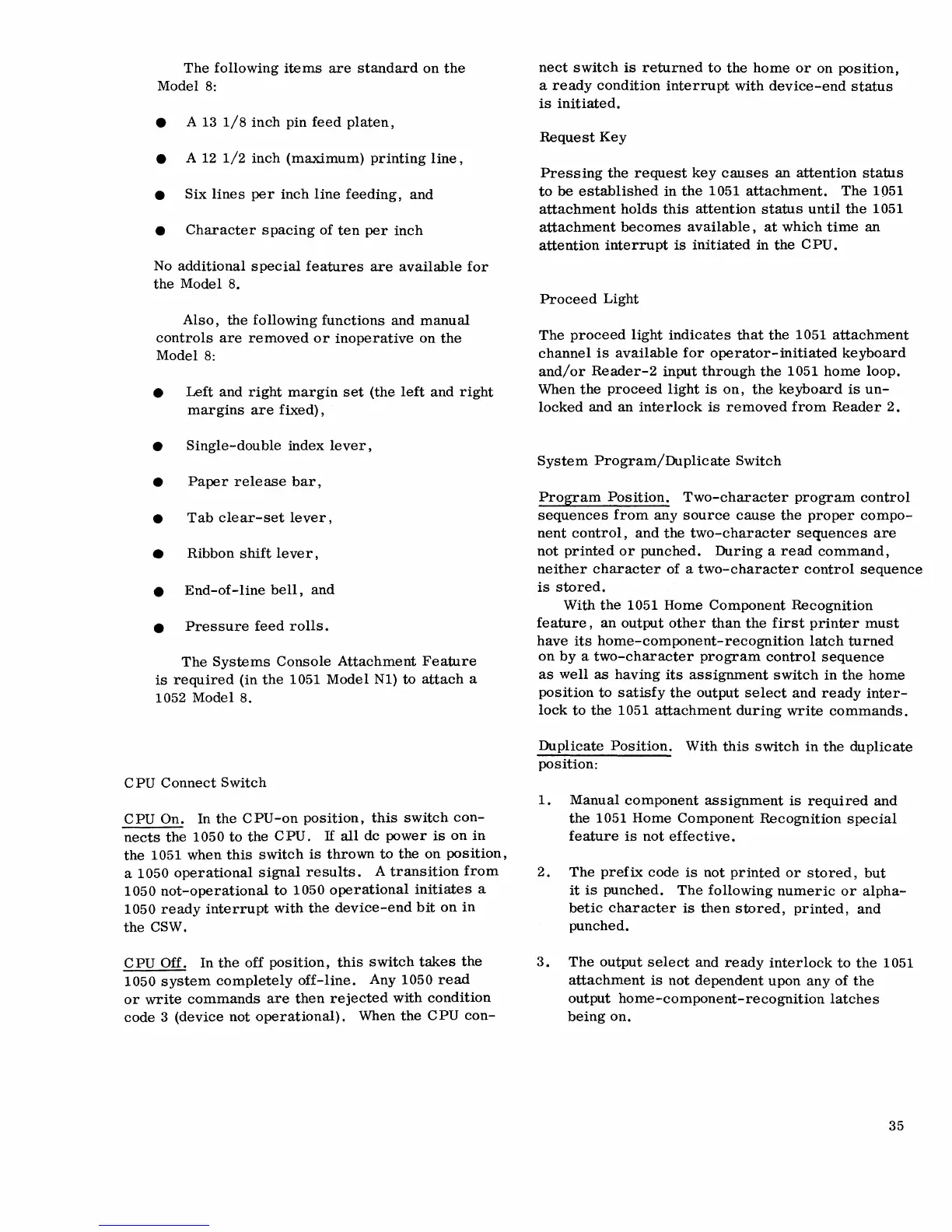

The
following
items
are
standard
on
the
Model
8:
A 13
1/8
inch
pin
feed
platen,
A 12
1/2
inch
(maximum)
printing
line,
Six
lines
per
inch
line
feeding,
and
Character
s
pacing
of
ten
per
inch
No
additional
special
features
are
available
for
the
Model 8.
Also,
the
following
functions
and
manual
controls
are
removed
or
inoperative
on
the
Model
8:
Left
and
right
margin
set
(the
left
and
right
margins
are
fixed),
Single-double
index
lever,
Paper
release
bar,
Tab
clear-set
lever,
Ribbon
shift
lever,
End-of-line
bell,
and
Pressure
feed
rolls.
The
Systems
Console
Attachment
Feature
is
required
(in
the
1051
Model
N1)
to
attach
a
1052 Model 8.
CPU
Connect
Switch
CPU
On. In
the
CPU-on
position,
this
switch
con-
nects
the
1050
to
the
CPU.
If
all
dc
power
is
on
in
the
1051 when
this
switch
is
thrown
to
the
on
position,
a 1050
operational
signal
results.
A
transition
from
1050
not-operational
to
1050
operational
initiates
a
1050
ready
interrupt
with
the
device-end
bit
on
in
the
CSW.
CPU
Off.
In
the
off
position,
this
switch
takes
the
1050
system
completely
off-line.
Any 1050
read
or
write
commands
are
then
rejected
with
condition
code
3
(device
not
operational).
When
the
CPU
con-
nect
switch
is
returned
to
the
home
or
on
position,
a
ready
condition
interrupt
with
device-end
status
is
initiated.
Request
Key
Pressing
the
request
key
causes
an
attention
status
to
be
established
in
the
1051
attachment.
The
1051
attachment
holds
this
attention
status
until
the
1051
attachment
becomes
available,
at
which
time
an
attention
interrupt
is
initiated
in
the
CPU.
Proceed
Light
The
proceed
light
indicates
that
the
1051
attachment
channel
is
available
for
operator-initiated
keyboard
and/or
Reader-2
input
through
the
1051
home
loop.
When
the
proceed
light
is
on,
the
keyboard
is
un-
locked
and
an
interlock
is
removed
from
Reader
2.
System
Program/Duplicate
Switch
Program
Position.
Two-character
program
control
sequences
from
any
source
cause
the
proper
compo-
nent
control,
and
the
two-character
sequences
are
not
printed
or
punched.
During
a
read
command,
neither
character
of a
two-character
control
sequence
is
stored.
With
the
1051 Home
Component
Recognition
feature,
an
output
other
than
the
first
printer
must
have
its
home-component-recognition
latch
turned
on
by
a
two-character
program
control
sequence
as
well
as
having
its
assignment
switch
in
the
home
position
to
satisfy
the
output
select
and
ready
inter-
lock
to
the
1051
attachment
during
write
commands.
Duplicate
Position.
With
this
switch
in
the
duplicate
position:
1.
Manual
component
assignment
is
required
and
the
1051 Home
Component
Recognition
special
feature
is
not
effective.
2.
The
prefix
code
is
not
printed
or
stored,
but
it
is
punched.
The
following
numeric
or
alpha-
betic
character
is
then
stored,
printed,
and
punched.
3.
The
output
select
and
ready
interlock
to
the
1051
attachment
is
not
dependent
upon
any
of
the
output
home-component-recognition
latches
being
on.
35
