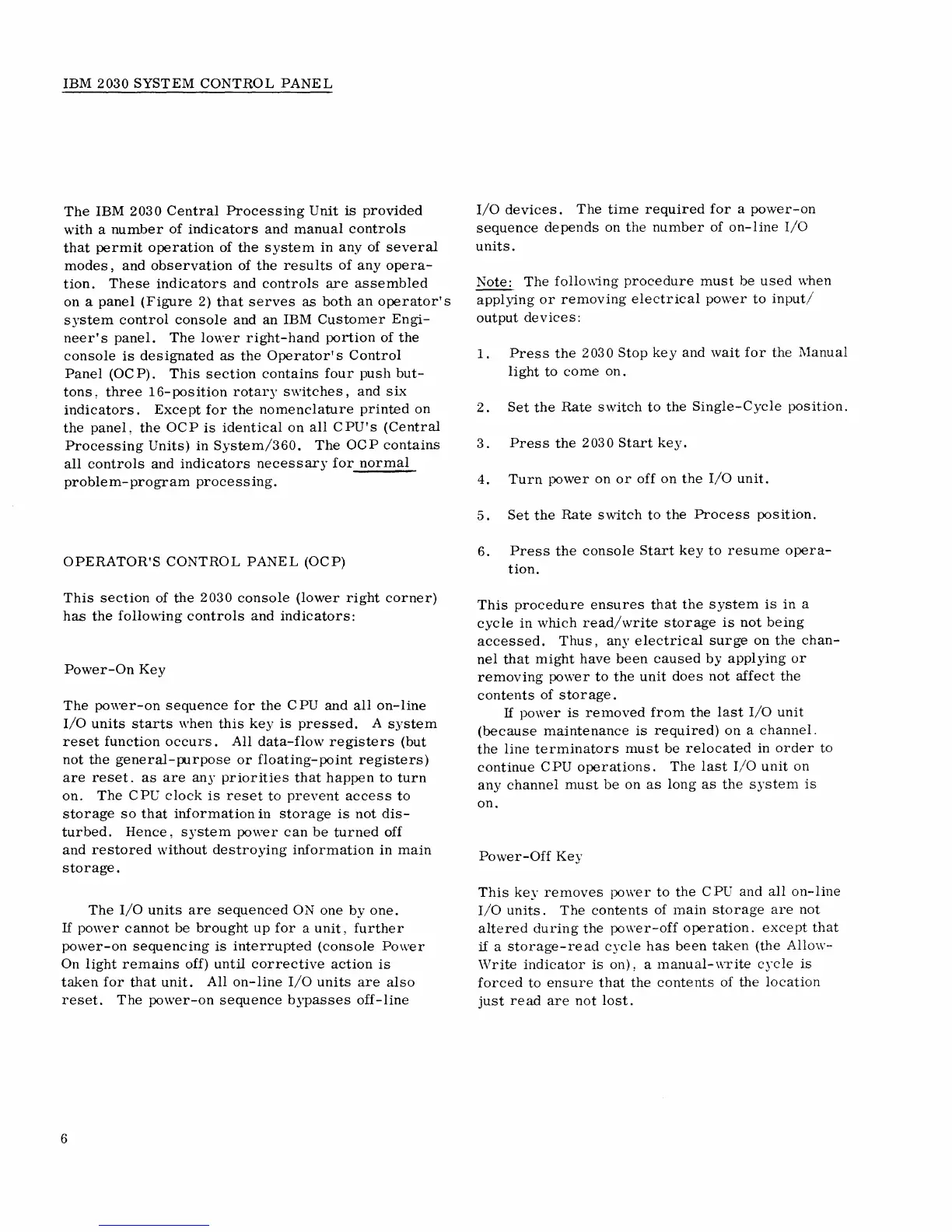

IBM
2030
SYSTEM
CONTROL
PANEL
The
IBM
2030
Central
Processing
Unit
is
provided
with
a
number
of
indicators
and
manual
controls
that
permit
operation
of
the
system
in
any
of
several
modes,
and
observation
of
the
results
of
any
opera-
tion.
These
indicators
and
controls
are
assembled
on
a
panel
(Figure
2)
that
serves
as
both
an
operator's
system
control
console
and
an
IBM
Customer
Engi-
neer's
panel.
The
lower
right-hand
portion
of
the
console
is
designated
as
the
Operator's
Control
Panel
(OC
P).
This
section
contains
four
push
but-
tons,
three
16-position
rotary
switches,
and
six
indicators.
Except
for
the
nomenclature
printed
on
the
panel,
the
OCP
is
identical
on
all
CPU's
(Central
Processing
Units)
in
System/360.
The
OCP
contains
all
controls
and
indicators
necessary
for
normal
problem-program
processing.
OPERATOR'S
CONTROL
PANEL
(OCP)
This
section
of
the
2030
console
(lower
right
corner)
has
the
following
controls
and
indicators:
Power-On
Key
The
power-on
sequence
for
the
CPU
and
all
on-line
I/O
units
starts
when
this
key
is
pressed.
A
system
reset
function
occurs.
All
data-flow
registers
(but
not
the
general-[Xlrpose
or
floating-point
registers)
are
reset.
as
are
any
priorities
that
happen
to
turn
on.
The
CPU
clock
is
reset
to
prevent
access
to
storage
so
that
information
in
storage
is
not
dis-
turbed.
Hence,
system
power
can
be
turned
off
and
restored
without
destroying
information
in
main
storage.
The
I/O
units
are
sequenced
ON
one
by
one.
If
power
cannot
be
brought
up
for
a
unit,
further
power-on
sequencing
is
interrupted
(console
Power
On
light
remains
off)
until
corrective
action
is
taken
for
that
unit.
All
on-line
I/O
units
are
also
reset.
The
po\ver-on
sequence
bypasses
off-line
6
I/O
devices.
The
time
required
for
a
power-on
sequence
depends
on
the
number
of
on-line
I/O
units.
Note:
The
follo\\ing
procedure
must
be
used
when
applying
or
removing
electrical
power
to
input/
output
devices:
1.
Press
the
2030
Stop
key
and
wait
for
the
l\lanual
light
to
come
on.
2.
Set
the
Rate
switch
to
the
Single-Cycle
position.
3.
Press
the
2030
Start
key.
4.
Turn
power
on
or
off
on
the
I/o
unit.
5.
Set
the
Rate
switch
to
the
Process
position.
6.
Press
the
console
Start
key
to
resume
opera-
tion.
This
procedure
ensures
that
the
system
is
in
a
cycle
in
which
read/write
storage
is
not
being
accessed.
Thus,
any
electrical
surge
on
the
chan-
nel
that
might
have
been
caused
by
applying
or
removing
power
to
the
unit
does
not
affect
the
contents
of
storage.
If
power
is
removed
from
the
last
I/O
unit
(because
maintenance
is
required)
on
a
channel.
the
line
terminators
must
be
relocated
in
order
to
continue
CPU
operations.
The
last
I/O
unit
on
any
channel
must
be
on
as
long
as
the
system
is
on.
Power-Off
Key
This
key
removes
power
to
the
CPU
and
all
on-line
I/O
units.
The
contents
of
main
storage
are
not
altered
during
the
power-off
operation.
except
that
if
a
storage-read
cycle
has
been
taken
(the Allo\\,-
\!.,Trite
indicator
is
on),
a
manual-\\Tite
cycle
is
forced
to
ensure
that
the
contents
of
the
location
just
read
are
not
lost.
