IBM ThinkCentre 8171 - Locating Components

Locating components

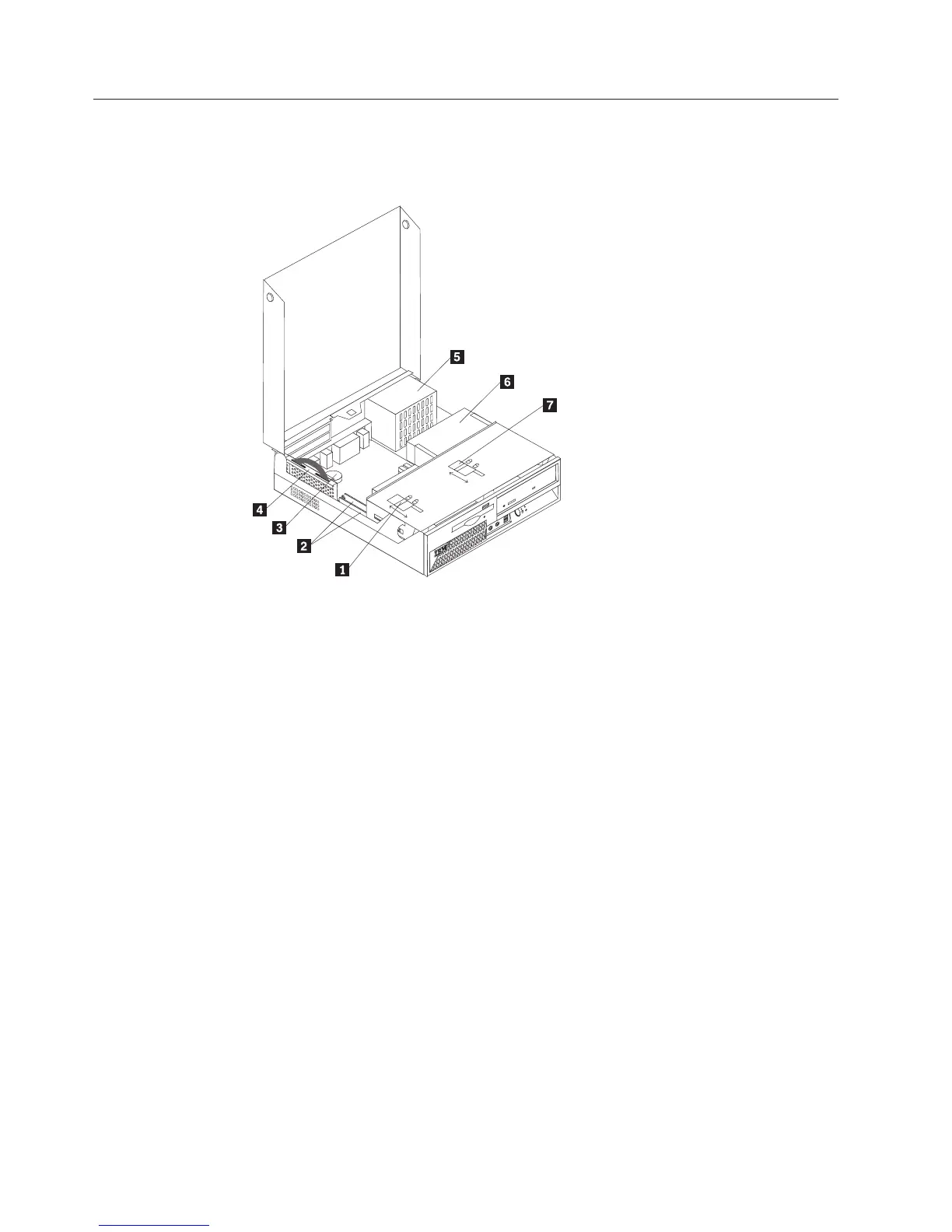

The following illustration will help you locate the various components in your
computer.
1 Diskette drive lock 5 Power supply assembly
2 Memory modules 6 CD or DVD drive (hard disk drive is
under the CD drive)
3 Battery 7 CD or DVD drive lock
4 PCI riser
