IBM THINKPAD X40 - 1080 LCD Module

1080 LCD module
For access, remove following FRUs, in order:
v “1010 Battery pack” on page 73
v “1020 Hard-disk drive” on page 74
v “1040 Mini-PCI, DIMM and Communication Daughter
Card (CDC)” on page 76
v “1050 Keyboard” on page 79
v “1060 Upper case” on page 82

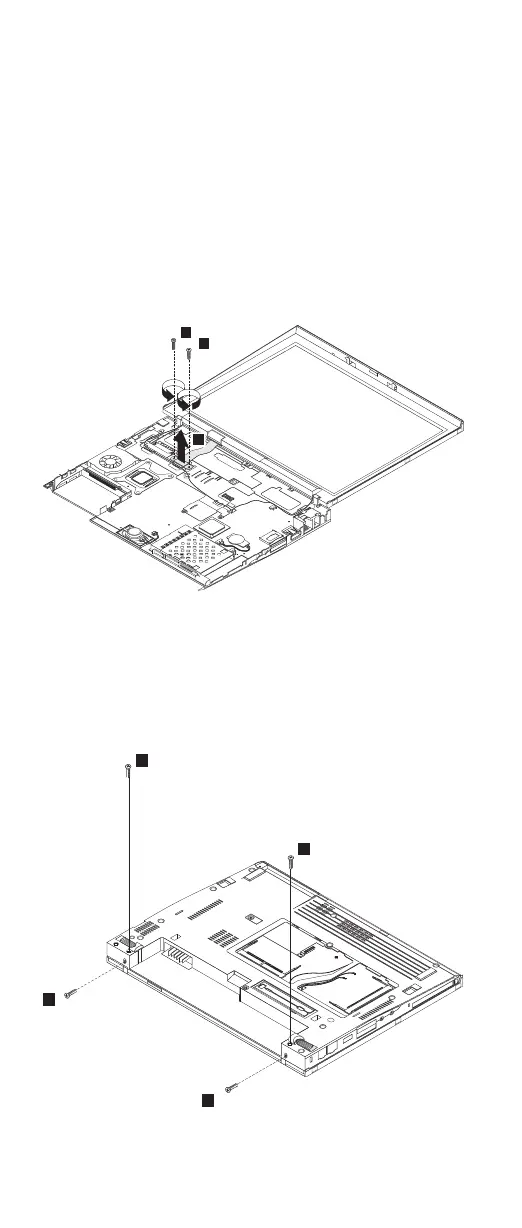

Before removing LCD module, remove LCD FPC cable
first.
2
1
1
Then remove the four screws as shown.
3
1a
3
1
3
3
Removing and replacing a FRU
86 ThinkPad X40 (2369, 2370, 2371, 2372, 2382, 2386)
